Panel-PC and Touch-Panels for panel mounting

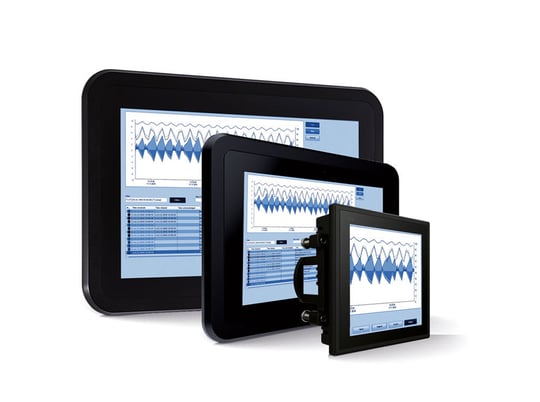

The E-Series with 4, 7 and 10 inch touch is used as a web HMI.
Alternatively, the 10-inch touch panel is also available as PLC Operating Terminal. The PLC Operating Terminals is equipped with the MicroBrowser and designed for the CoDeSys web visualization and the visualization of logic controllers (PLCs) with integrated web server. The MicroBrowser, optimally integrated into the CPU architecture, ensures a lightning-fast startup and high performance during operation.

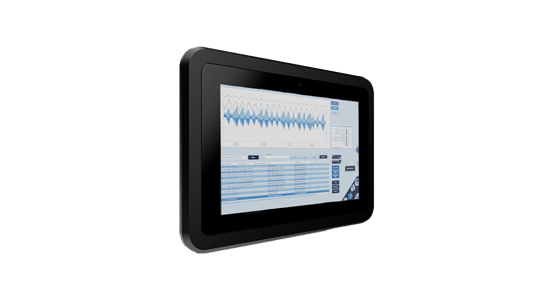

The E-Series is available as web panel (4-, 7- and 10-inch) and PLC operating panel with Android (10-inch).

The F-Series with 7 inch to 22 inch touch is used for panel mounting. The touch panels are particularly characterized by their robust design and ensure maximal production safety under tough requirements. The F-series also offers IP65 protection on the front. This series replaces the tci G-series due to its installation compatibility. The most common applications can be found in the HMI area with user interfaces and visualizations. The F series offers solutions with Linux, Android, PC technology and can be as a web panel integrated.

(F16A-PX)

The touch panels of A-series are available with a 15 inch or 19 inch touchpanel. It's also possible to get an integrated keyboard and touchpad in protection class IP65.

The Touch Panels of the C-Series can be used as PLC Operating Terminal. The variants are quipped with 7", 12" and 15" touch. The PLC Operating Terminals are equipped with the MicroBrowser and designed for the CoDeSys web visualization and the visualization of logic controllers (PLCs) with integrated web server. The MicroBrowser, optimally integrated into the ARM7 architecture, ensures a lightning-fast startup and high performance during operation.

The slim and robust touchpanels with 19 inches convince due to their continuous glass surface. The widescreen display is very user friendly as it is equipped with durable LED backlights. It will be equipped with a classic 4:3 screen.

This robust System and wireless system configuration with tci baseboard and panel mount in common. The touchpanels are suitable for many HMI applications both in industrial environment and in the sectors laboratory, medicine, food, logistics and package.
