Touch-Panel E10A

Touch Panel E10A

  • E10A-XI, 24V: UL certified   csm_logo_ul-cert_black_E10A_ec98c3ce56
  • Widescreen touch panel for panel mounting
  • PCT Glas Touch 10.1" with native resolution of 1024*600
  • optionally serial interfaces
  • also suitable for smart home applications

The 10-inch touchpanel is ideal for cost-sensitive industrial applications. The slim and rugged touch panel with IP protection scores highly with an easy-to-clean, all-glass front and an industrial synthetic chassis. The fanless panels are available as PLC operating panel E10A-XS and Android touch panel E10A-XI. The technically identical E10T is available for support arm mounting.

Alternatively, we offer the system with 4 inch and 7 inch touch screen.


Request now Download Datasheet

Variants



E10A-XI (Android Touchpanel) android_robot_60x68px   icons_UL_20x20

Thanks to the Android operating system and HTML5 browser, the panel can be used universally in the classic HMI area, for example for operation and visualization. Optionally, serial interfaces are possible.


E10A-XS (PLC control panel) XS-Technologie_Logo_100px

XS technology includes the optimal combination of MicroBrowser and power-efficient ARM hardware. The PLC operator terminals from tci with drivers for all common PLC systems as well as OPC client and VNC client are based on this.

Product information at a glance

Technical data

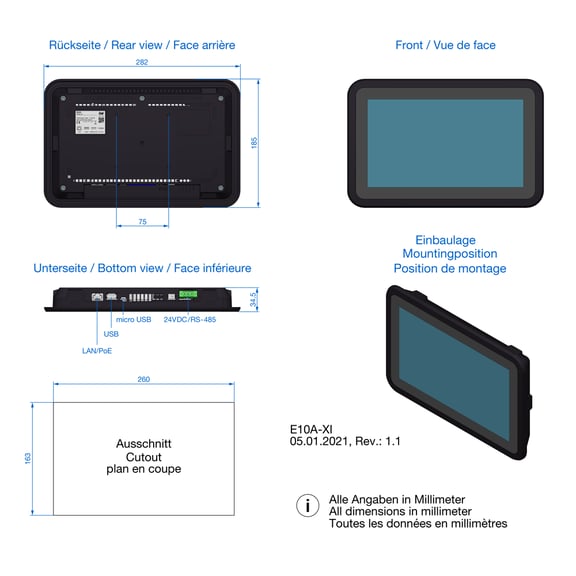

  • touch panel for panel mounting or VESA 75
  • 10" LED-TFT, 1024 x 600, 450 cd/m²
  • capacitive multitouch (PCT)
  • synthetic chassis
  • fanless
  • Protection category IP 54
  • storage temperature: 0 up to 70°C
  • relative humidity:
    Operating: 10 to 90% not condensing
  • working temperature:
    E10A-XS: 0 up to 60°C
    E10A-XI: 0 up to 50°C
  • power input:
    E10A-XS:  24 VDC and PoE
    IEEE Std 802.3af (class 0)
    E10A-XI:
    24 VDC or PoE (Class 0) or AC via external power supply.
    Optional accessories: 24 VDC and RS485
  • weight: 1,00 kg

Order info

E10A-XS

Web panel for panel mounting, inlaid 10"glass touch, embedded ARM CPU, ethernet 10/100, CodeSys 3.0 Unterstützung, Real VNC Server Version 5.0.3 compatible, equipped with Image MicroBrowser SpiderControl & CoDeSys v3.x for XS-technology

E10A-XI
(UL certified)

Android-Panel for panel mounting, inlaid 10" glass touch LED-TFT (PCT), multitouch, embedded Quad-Core CPU Board RK3288, 1,6 GHz, 2GB RAM, 8GB eMMC, ethernet 10/100, 1x USB2.0

E10A-Line

Execution as Building automation system pureKNX. Please contact our sales team

Additional equipment

Mounting

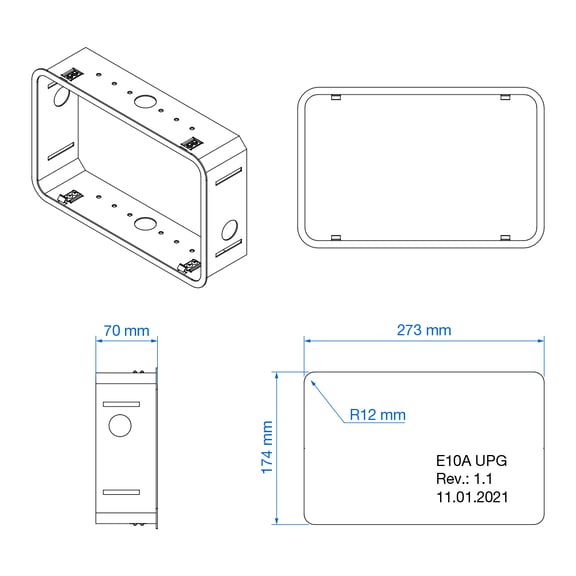

UPG - Built-in box
HMK - Cavity wall mounting kit consisting of bracket and installation template

Options

E10A-XI
Linux, MicroBrowser-App for Linux, AutomationBrowser App for android, Bluetooth, tci WebWizard

Customized

For other configurations please ask our system consultants

Power consumption

Operating status

RK3288 (P in W)

Operate under full load, display max. brightness

12,8

Operate under Idle-Loop, display max. brightness

6,0

Operate, display off

2,0
