Touch-Panel A15

Touch Panel A15

  • compact and rugged design
  • resistive touch with classic 4:3 aspect ratio

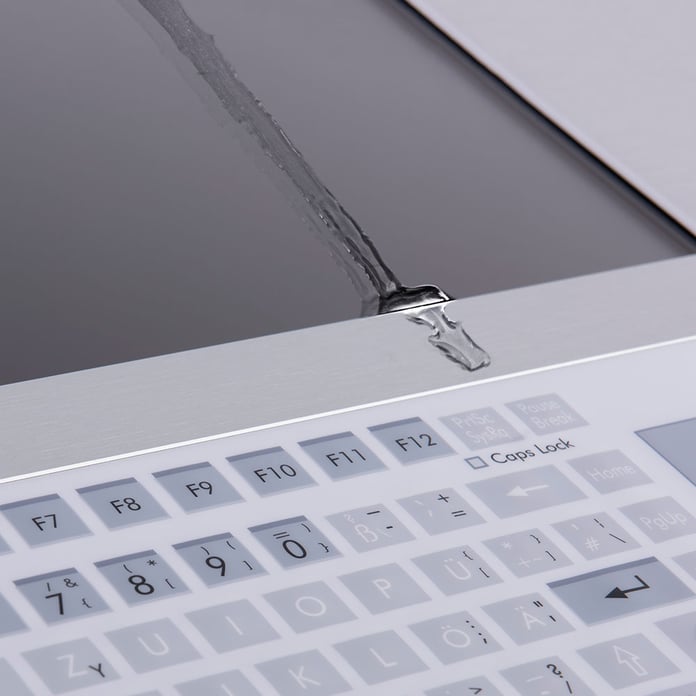

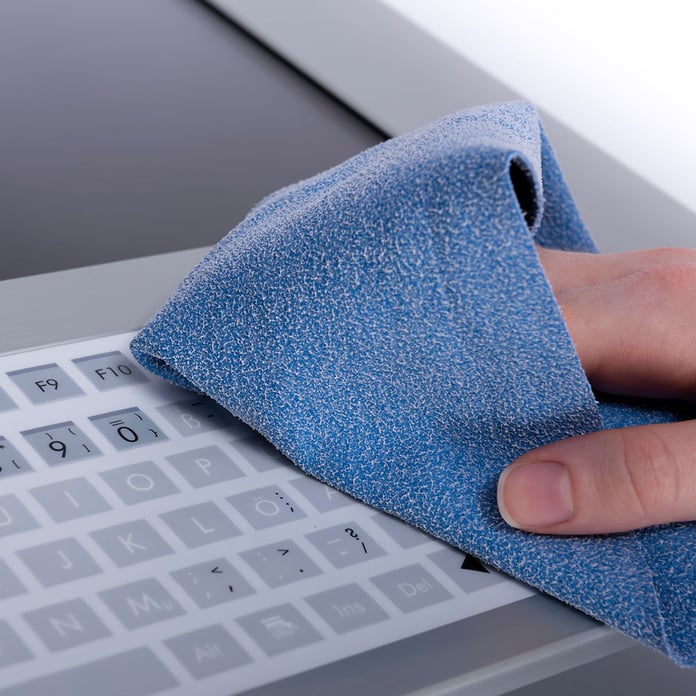

  • ​​​​optionally with integrated keyboard and touchpad in IP65

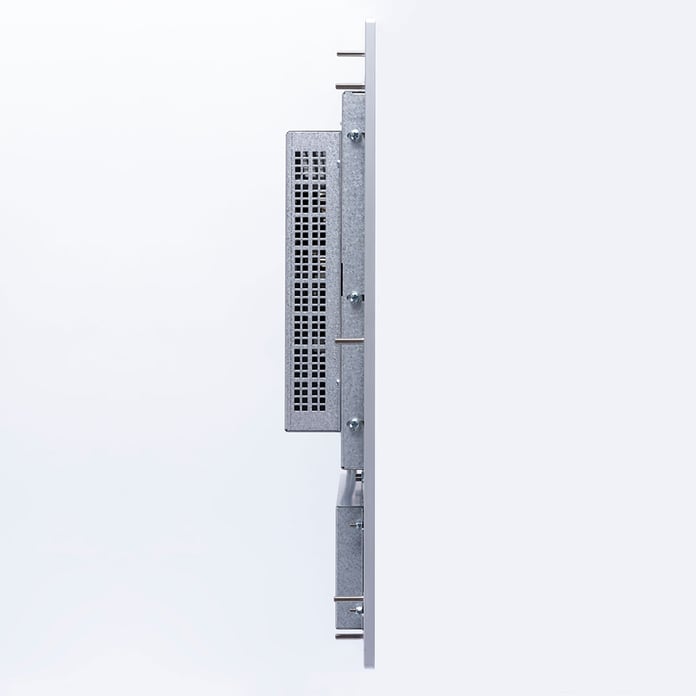

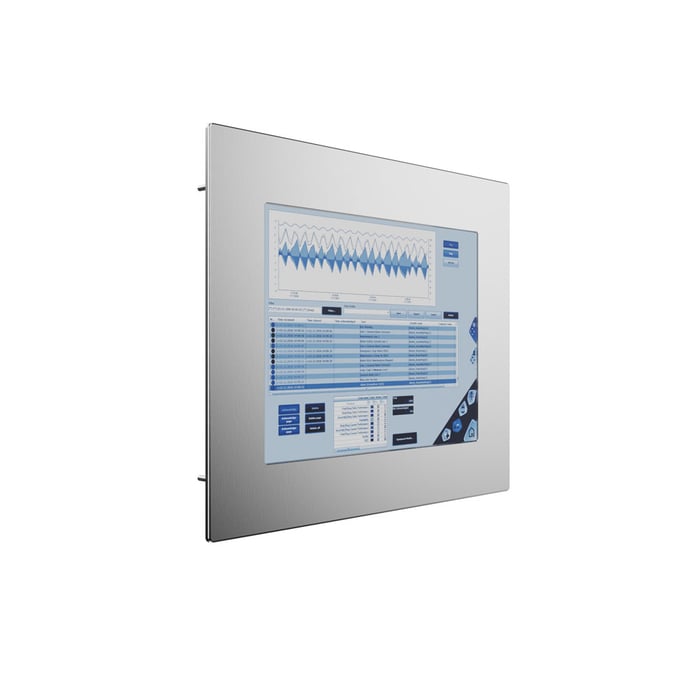

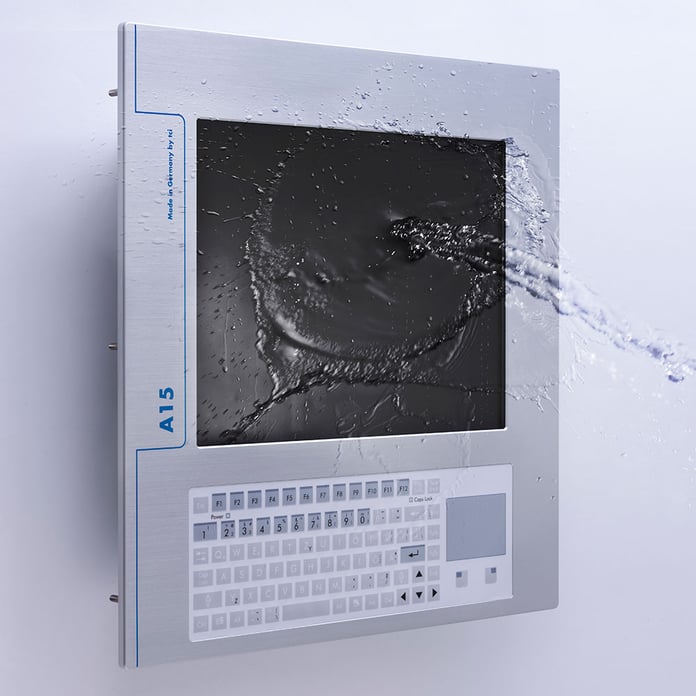

The A15 touch panel is designed for panel mounting and is in accordance of the protection class IP65. Rugged design and low installation depth of chassis, high brigtness and a high reading angle are the advantages by idustrial using. The A15 can be used as TFT display and as panel PC.

Request now Download Datasheet

Variants

A15-LX (Windows, Linux Panel-PC) windows_logo_60x60px Linux_pinguin_60x69px

The A15-LX can be used as powerful and fanless embedded panel PC in production areas. Additional to this, the system is available with keyboard and touchpad.


A15-DITX  (Windows, Linux Panel-PCwindows_logo_60x60pxLinux_pinguin_60x69px

The A15-DITX panel PC can be used as powerful and fanless embedded Panel PC in production areas. Additional to this, the system is available with keyboard and touchpad. The chassis offers an additional free slot.


A15-iTFT (Industrial Monitor)

The A15-iTFT industrial monitor can be used as remote solution with an IPC. A range extender solution as well as an integrated keyboard and touchpad can be used.

Product information at a glance

Technical data

  • 15" TFT, 1024 x 768, 450 cd/m²
  • analog resistive touchscreen
  • milled aluminium front IP65, customized design and stainless steel upon request

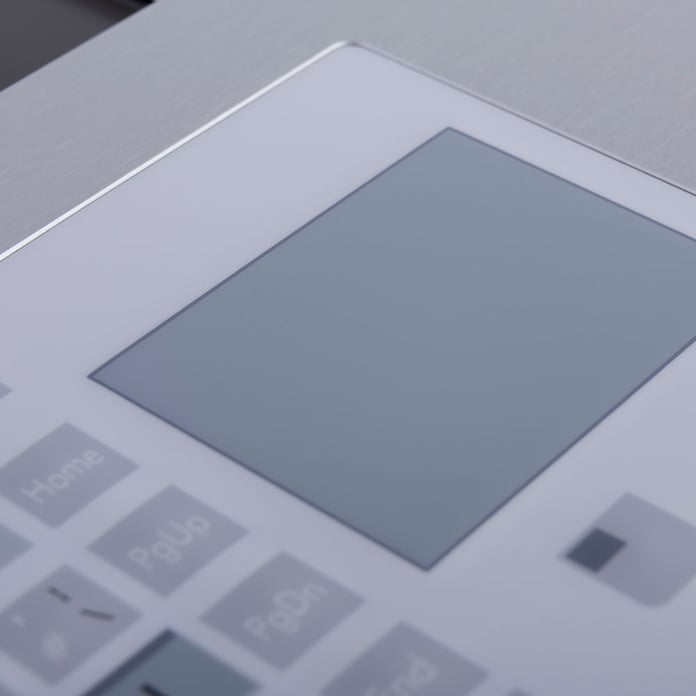

  • optionally keyboard and touchpad (German and English layout)
  • steel chassis
  • individual technical equipment by request
  • working temperature: 0 up to 50° C
  • storage temperature: -20 up to 60° C
  • relative humidity: 5 up to 90 %, not condensing
  • power input:
    A15-DITX-EP / A15-LX-PC: 24 VDC or 230 VAC
    A15-LX-iTFT: 24 VDC
  • weight: 4,8 kg

Order info

A15-LX-PC

Panel PC, 15" touch resisitive, tci-Baseboard Intel Atom “Apollo Lake” Dual Core CPU E3930, 2x 1,8GHz, Intel HD500, 4GB RAM,  SSD, dual ethernet
Optional: Board Mini-ITX up to Core i7

A15-DITX-EP

Panel PC for panel mounting, 15" touch resisitive, Board Mini-ITX up to Core i7, HDD/SSD, HDD/SSD, one free slot

A15-iTFT

Industrial monitor, 15" touch resisitive, interfaces VGA and DVI

Options

CPU upgrades from Intel Atom to current core technology, stainless steel front upon request, front with integrated touchpad and keyboard, 19" front 7U upon request

Customized

For other configurations please ask our system consultants

Operating systems

Windows 10 IoT LTSC 2021, others on request

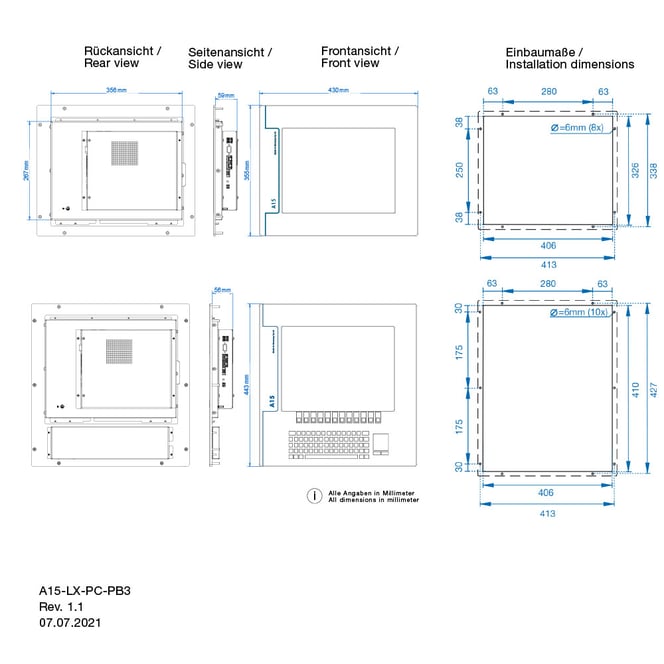

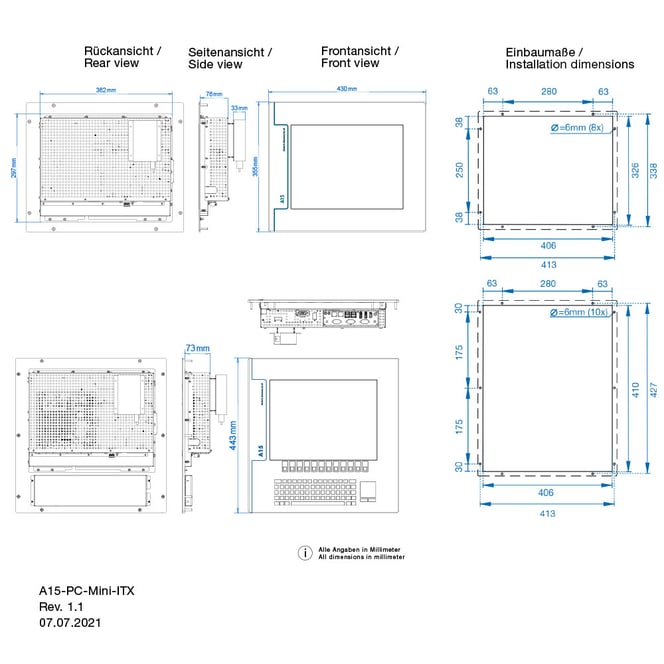

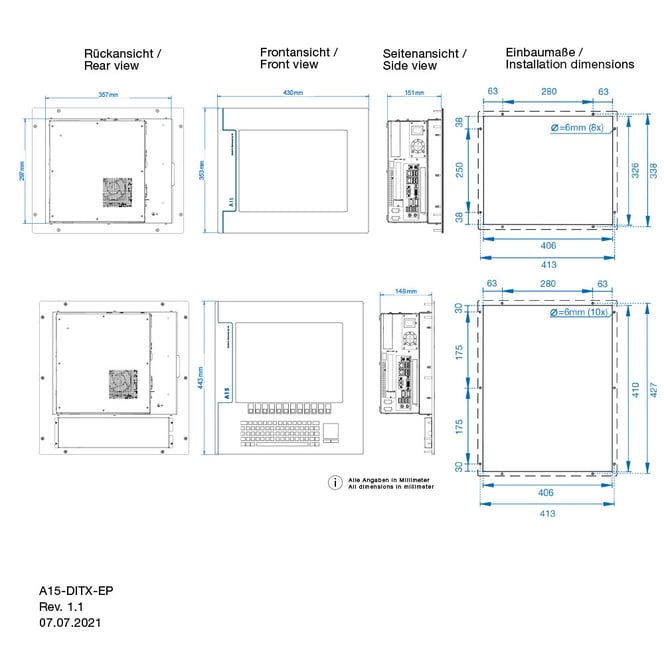

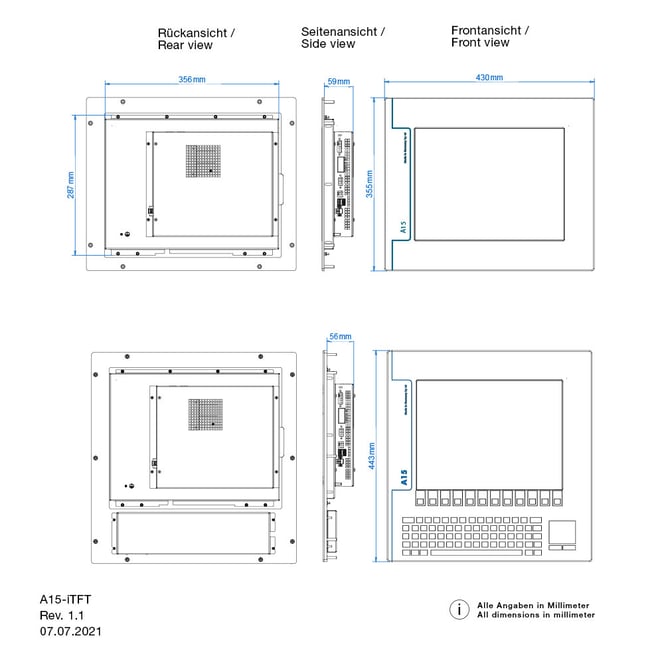

Technical drawing
