Touch Panel F22A
-
high-quality IPS display with good readability, optical bonding
-
quick and easy mounting
-
tci system design for extra long availability
- with pre-installed Webbrowser from scalable modular system

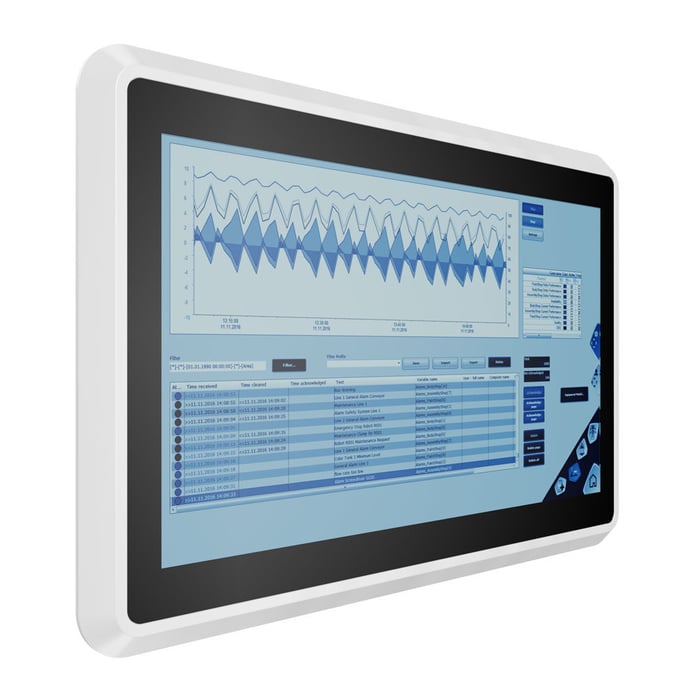

The touch panel F22A is a robust built-in device for mounting in a control desk or in a switch panel. The display provides more visualization, which gives the operator a better readability and easier touch operation to the user. AS variants are PC-based systems, Android or pure displays available. Alternatively, Yocto from the Linux family is available as part of the scalable modular system.
Variants

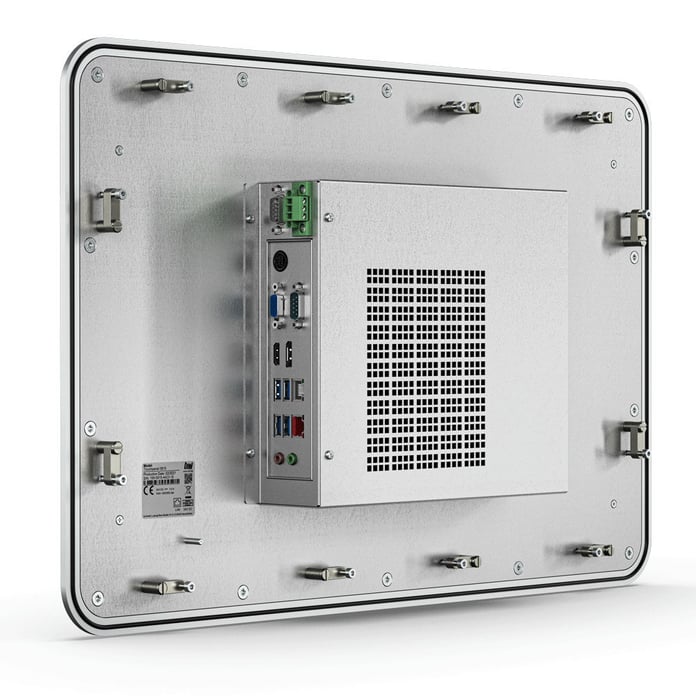

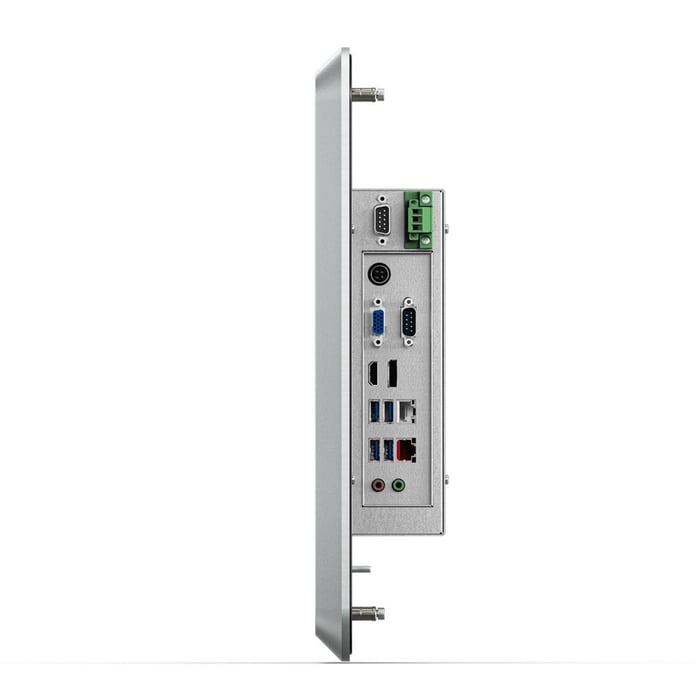

F22A-PC (Windows, Linux Touchpanel)
The touch panel PC is suitable wherever powerful applications are to be used under Windows or Linux. Since there are no moving parts such as fans and HDD, the PC is completely maintenance free and designed for continuous operation 24/7/365.
F22A-VI (Android Touchpanel)
In addition to the PC version, you can use this system with Android operating system. The most common applications can be found in the classic HMI area with user interfaces and visualizations. Alternatively with Yocto as part of the scalable modular system.

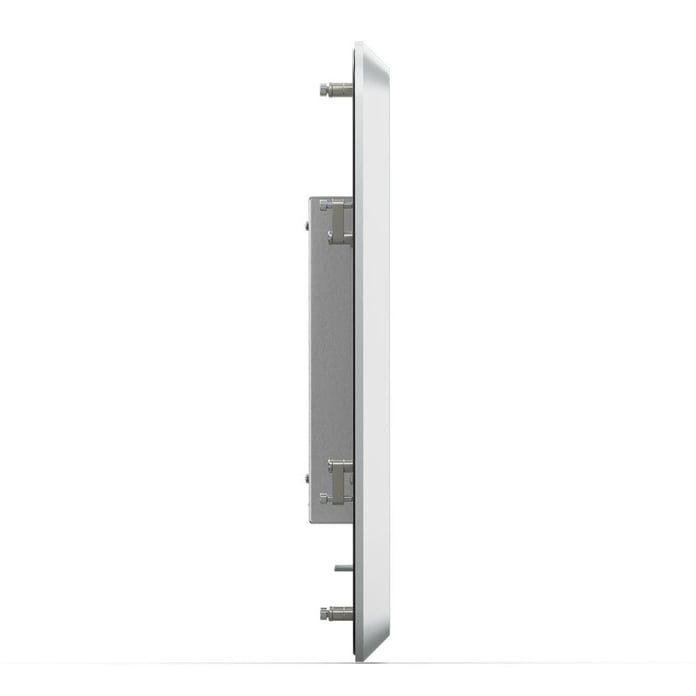

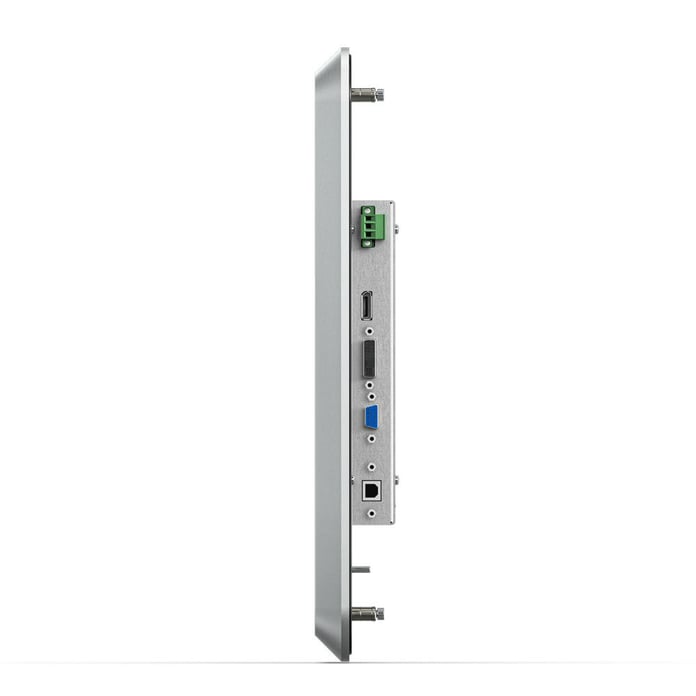

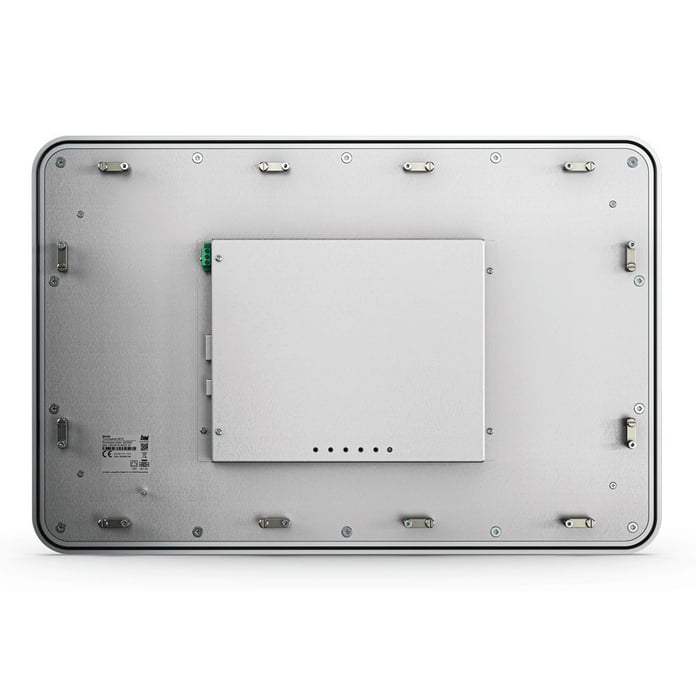

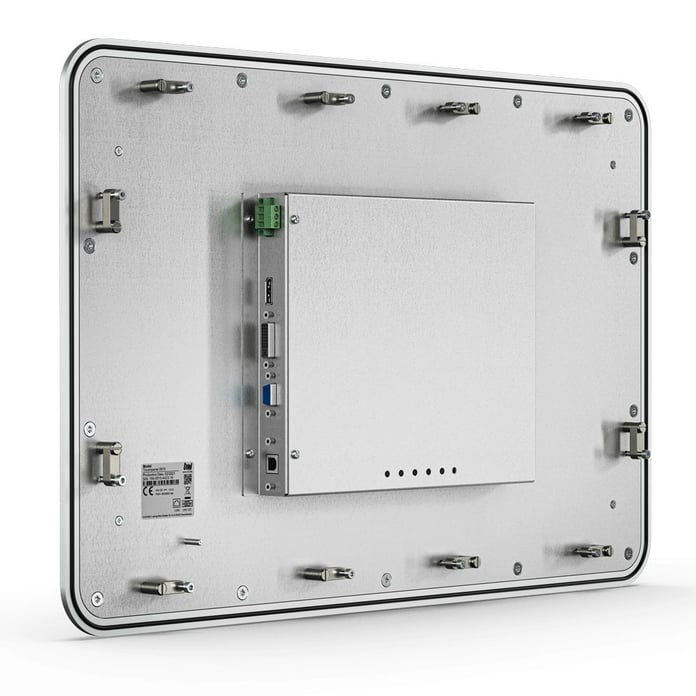

F22A-iTFT (Industrial Monitor)
The F22-iTFT industrial monitor can be used as remote solution with an IPC.
Product information at a glance
Technical data
- touch panel for panel mounting
- 22" LED-TFT, IPS, Full-HD, 1920 x 1080

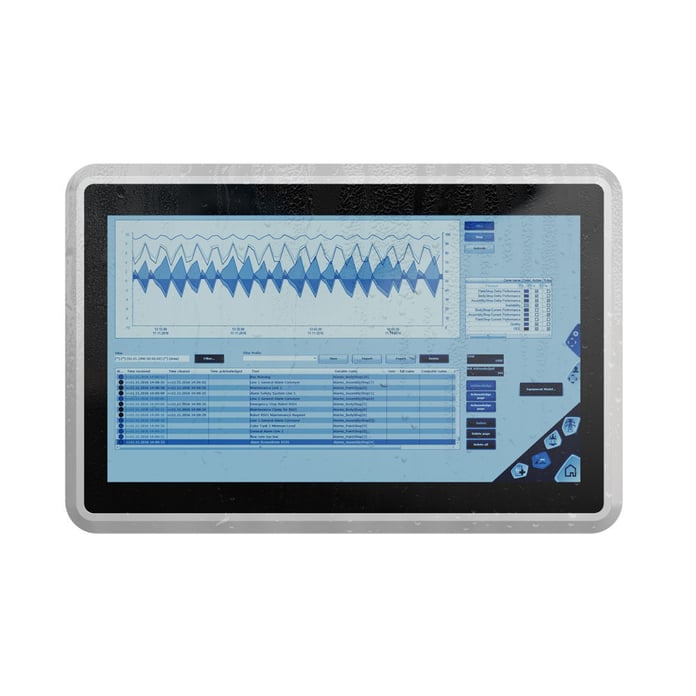

- aluminium front IP65
- capacitive multitouch (PCT)
- Optical bonding ensures a sharp and brilliant display image, low reflections and an excellent reading angle
- working temperature: 0 up to 50°C
- storage temperature: 0 up to 70°C
- relative humidity:
Operating: 10 bis 80% not condensing
Storage / Transportation: 10 bis 90%, not condensing - power supply:
F22A-PC : 24 VDC / F22A-iTFT: 24 VDC
F22A-VI:
24 VDC und PoE+ IEEE Std 802.3at (Class 4)
Order info
F22A-PC |
Panel PC, 22" touch screen, Board 3.5“ SBC, Intel® Celeron® J6412 CPU (4x 2-2.6 GHz), fanless, Intel UHD Grafik, 8GB RAM, 128GB SSD, 2x HDMI, 2x RJ45 LAN, 4x USB3.2 (Gen1) Optional: Board 3.5" SBC, fanless, Intel® Core™ i5-1135G7 CPU / Board Mini-ITX (with fan) |
F22A-VI
|
Android-Panel, 22" Touch, Embedded CPU Board, Rockchip RK3399 dual core Cortex A72 + quad-core Cortex A53, 2GB RAM, 32GB eMMC storage, Ethernet 100/1000, PoE+ |
F22A-iTFT |
Industrial monitor, 22" Touch |
Options |

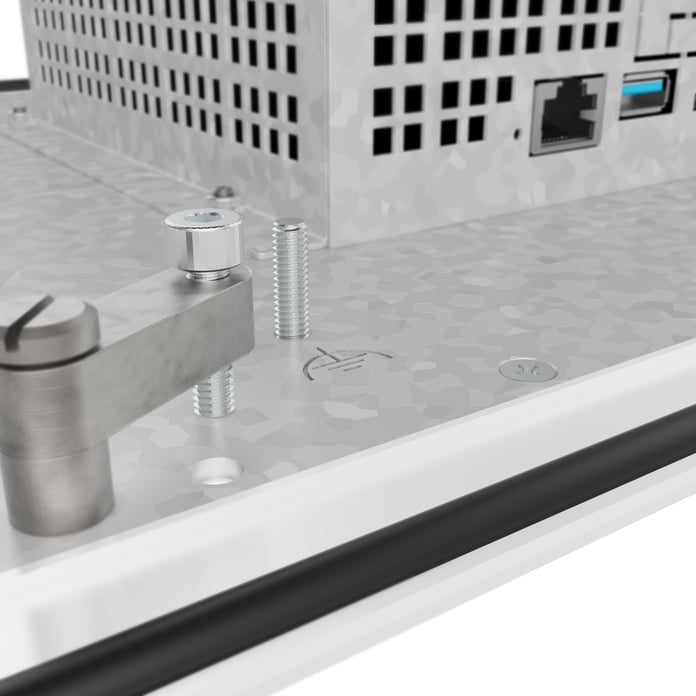

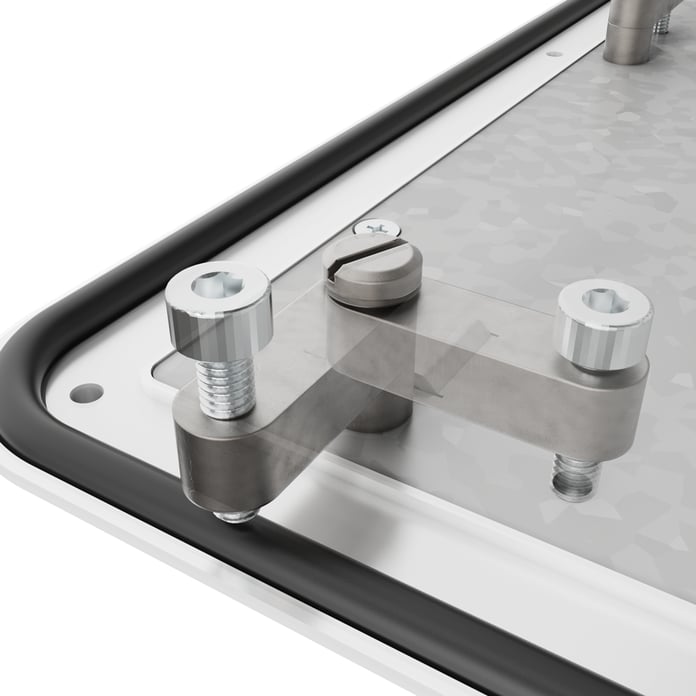

KNX-Module, tci WebWizard, AutomationBrowser App for Android, Eccentric technology for quick mounting |
Customized |
For other configurations please ask our system consultants |
Operating systems |
Windows 10 IoT LTSC 2021, others on request |

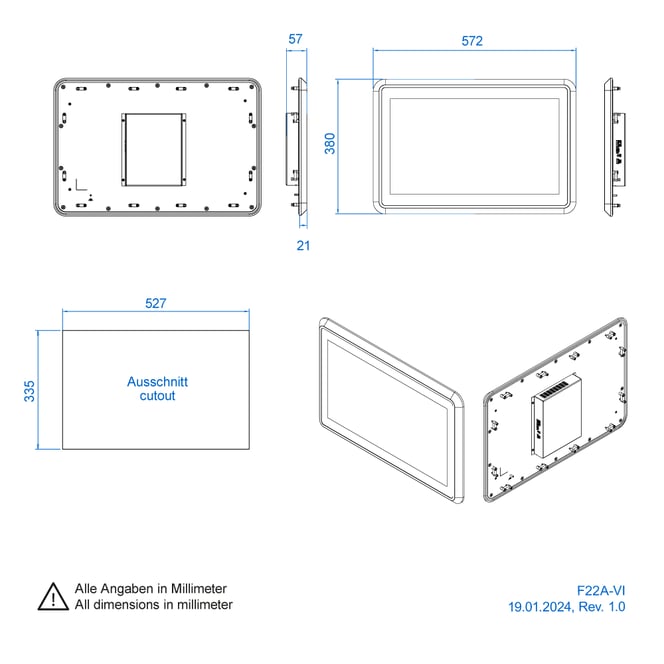

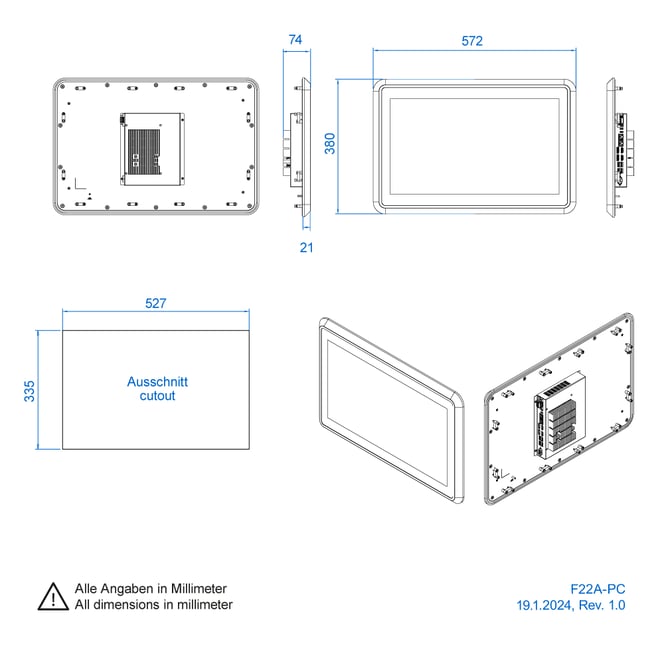

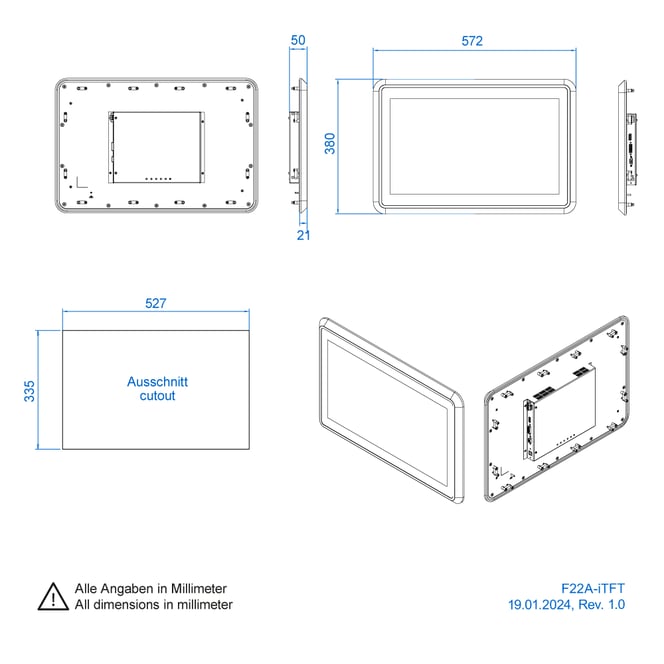

Technical drawing
