Touch Panel F10A

  • flat and seamless real glass front
  • quick and easy mounting
  • robust wireless system design
  • tci system design for extra long availability
  • with pre-installed SmartStart Webbrowser
Touch panel stainless steel housing IP65
Touch panel stainless steel housing IP65
Hygienic design touch panels
Front optionally in stainless steel
Touch panel stainless steel housing IP65

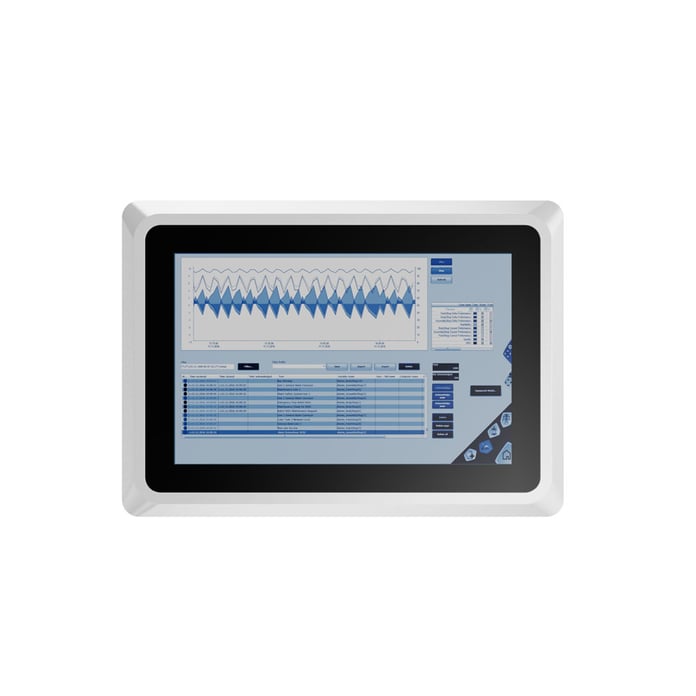

F10A with black cover glass frame
Touch panel stainless steel housing IP65

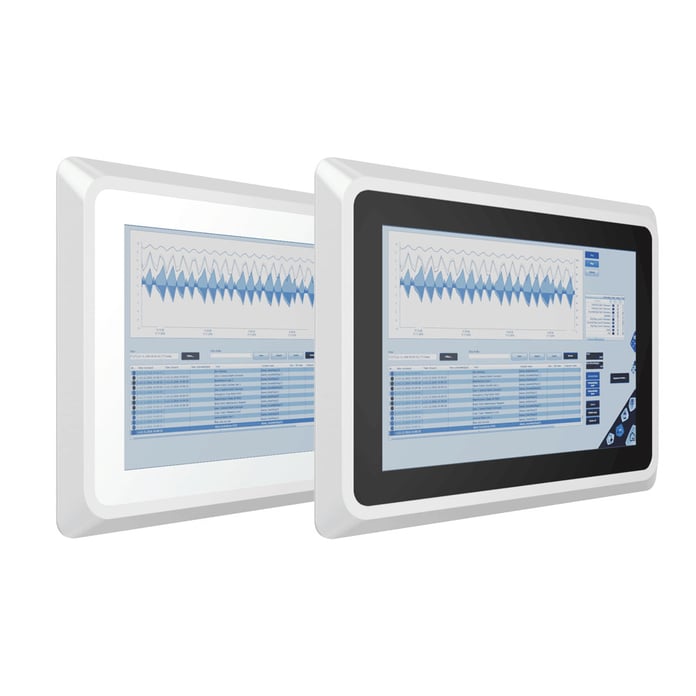

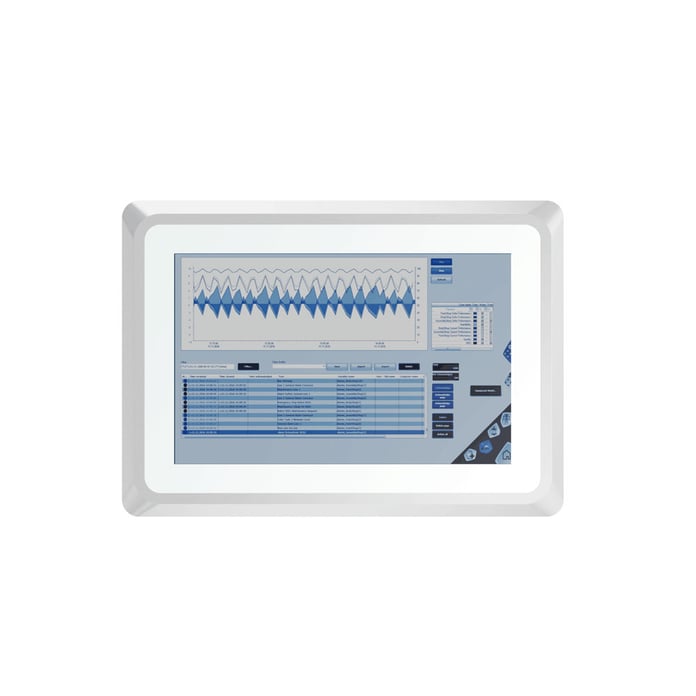

F10A-PC / -VI optionally available with white cover glass Frame
Touch display with eccentric
robust stainless steel touch panels

The touch panel F10A is a robust built-in device for mounting in a control desk or in a panel. The bright 10-inch widescreen multi-touch display allows precise display and operation of industrial applications. The display with capacitive glass touch is built seamlessly into the milled aluminum front and offers protection class IP65. Beveled edges ensure a reduction in dirt.
The touch panel is available in the variants F10A-XS (PLC operator panel), F10A-VI (Android) and F10A-PC (Windows, Linux). Alternatively, Yocto from the Linux family is available as Smartstart.

The systems replace the discontinued C100A and G10A systems.

Request now Download Datasheet
Learn more about SmartStart now!

Variants

F10A-PC (Windows, Linux Touchpanel) windows_logo_60x60px Linux_pinguin_60x69px

The touch panel PC is suitable wherever powerful applications are to be used under Windows or Linux. Since there are no moving parts such as fans and HDD, the PC is completely maintenance free and designed for continuous operation 24/7/365.

F10A-VI (Android Touchpanel) android_robot_60x68px

The Android touch panel takes into account the increasing spread of Android in the industry. The F10A-VI scores particularly well as a universal all-rounder in web-based visualization and operating applications.

F10A-XS (PLC control panel) XS-Technologie_Logo_100px

The universal PLC operating panels enable the web-based visualization of common PLC systems, for example from Codesys, Beckhoff or Siemens. The natively integrated MicroBrowser ensures a lightning-fast system start and high performance during operation. The systems are compatible with older solutions that are still based on Java applets - and can replace them as part of a modernization. The F10A-XS can also show any screens of other computers as a client for OPC servers or as a VNC client.

Product information at a glance

Technical data

  • touch panel for panel mounting
  • 10“ LED-TFT in different display variants:
    - F10A-PC in 1024 x 600  or 1280 x 800
    - F10A-VI: 1280 x 800
    - F10A-XS: 1024 x 600
  • capacitive multitouch (PCT)
  • aluminum front IP65
  • working temperature: 0 up to 50°C
  • storage temperature: 0 up to +70°C
  • relative humidity: 10 up to 90%, not condensing
  • power input:
    F10A-XS:  24 VDC and PoE
    IEEE Std 802.3af (Class 0)
    F10A-VI:  24 VDC and PoE+
    IEEE Std 802.3at (Class 4)
    F10A-PC: 24 VDC

Order info

F10A-PC

Panel PC 10" touch screen, Board 3.5“ SBC, Intel® Celeron® J6412 CPU (4x 2-2.6 GHz), fanless, Intel UHD Grafik, 8GB RAM, 128GB SSD, 2x HDMI, 2x RJ45 LAN, 4x USB3.2 (Gen1)
Optionally also with white cover glass frame available

F10A-VI

Android panel,10" touch screen, Embedded Quad-Core CPU Board, 1,6GHz, 1GB RAM, 1x RJ45 LAN (PoE+, Class 4), 1x USB2.0
Optionally also with white cover glass frame and with front in stainless steel available

F10A-XS

PLC-Panel, 10" touch screen, Embedded ARM CPU, Ethernet 10/100, PoE (Class 0), brightness sensors, CodeSys 3.0 support, Real VNC Server Version 5.0.3 compatible, equipped with Image MicroBrowser SpiderControl & CoDeSys v3.x for XS-Technology

Options

KNX-Modul, AutomationBrowser App for Android, tci WebWizard

Customized

 For other configurations please ask our system consultants

Operating systems

Windows 10 IoT LTSC 2021, others on request
Debian 10 LTS, Android 9
Yocto (Linux) mit SmartStart

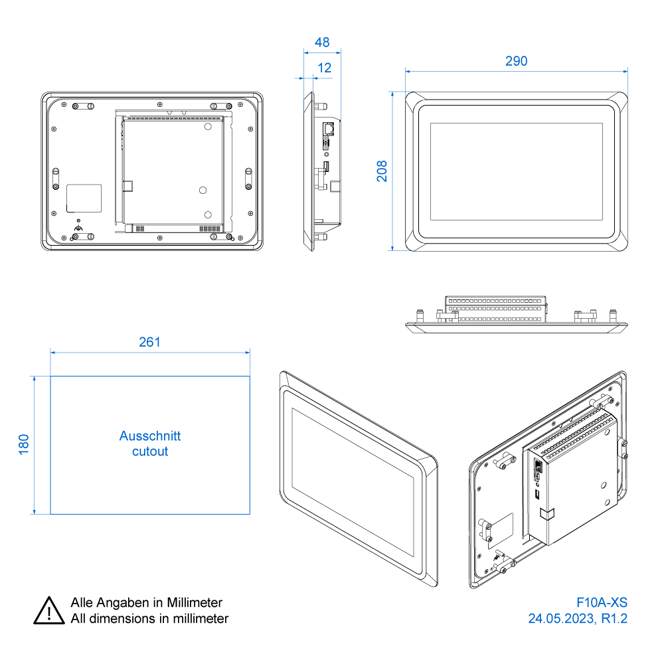

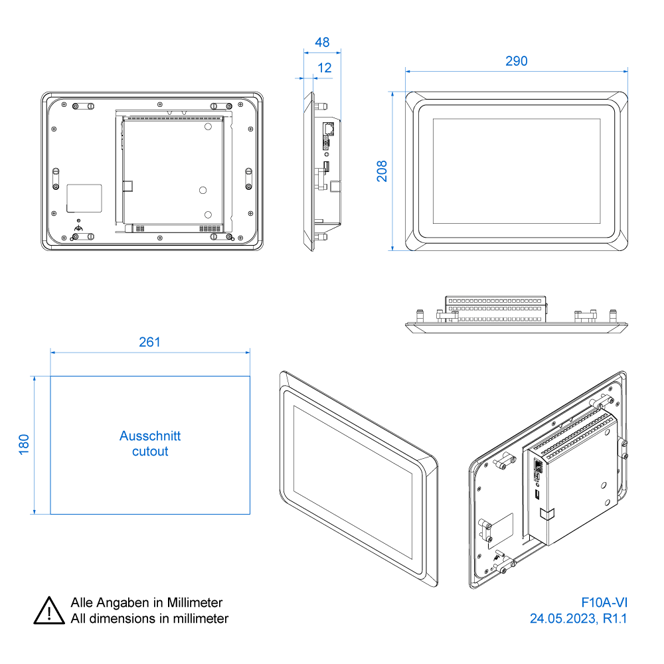

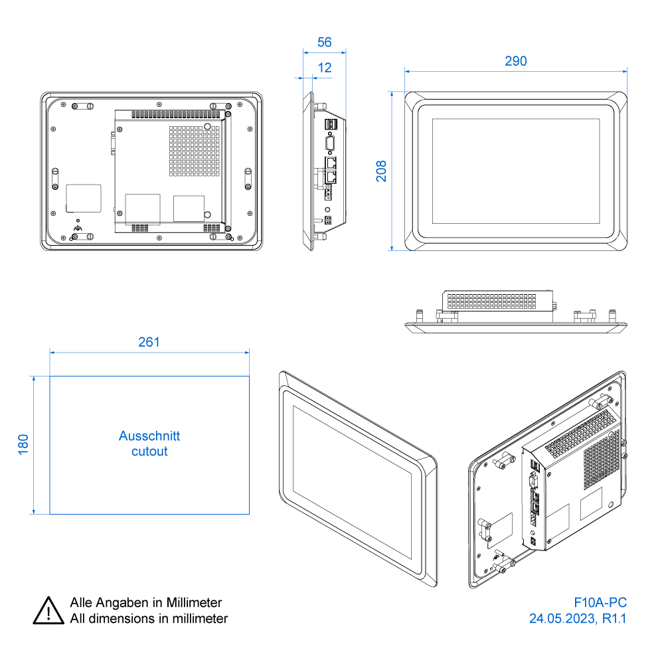

Technical drawing
