Touch-Panel F07A

Touch Panel F07A

7 inch touch panel eccentric mounting

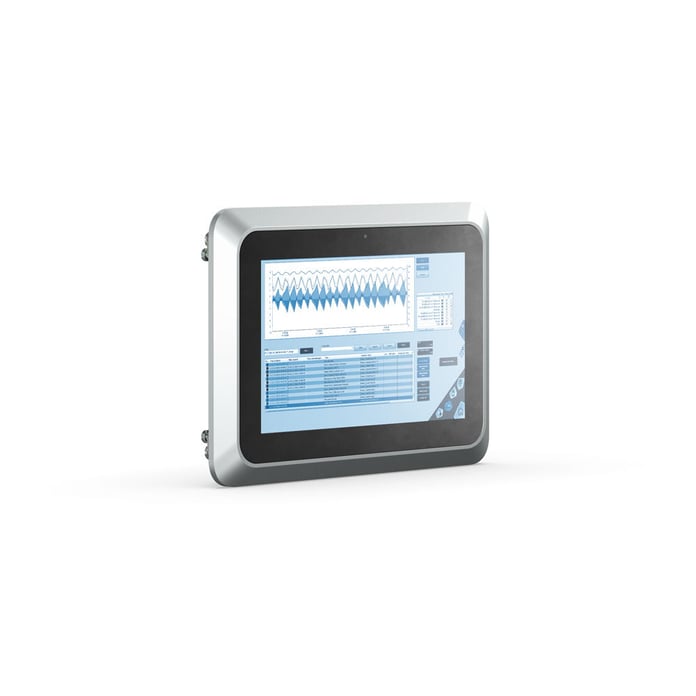

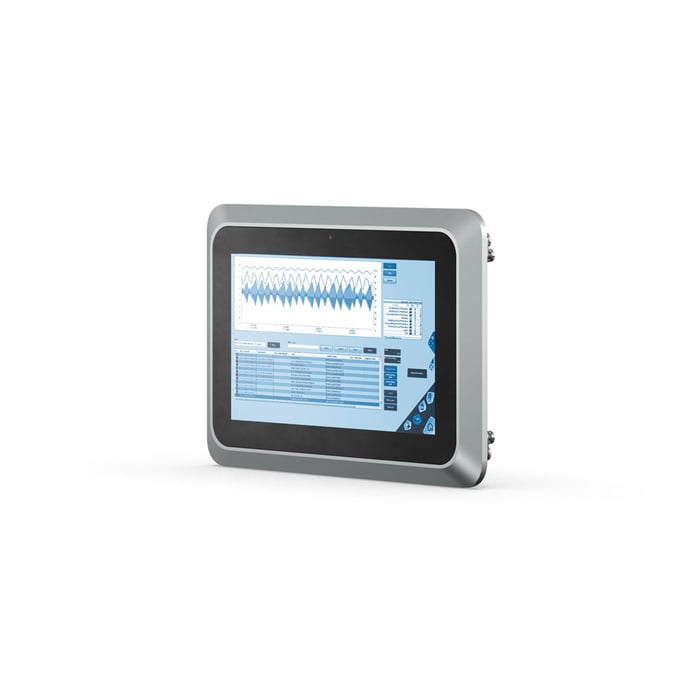

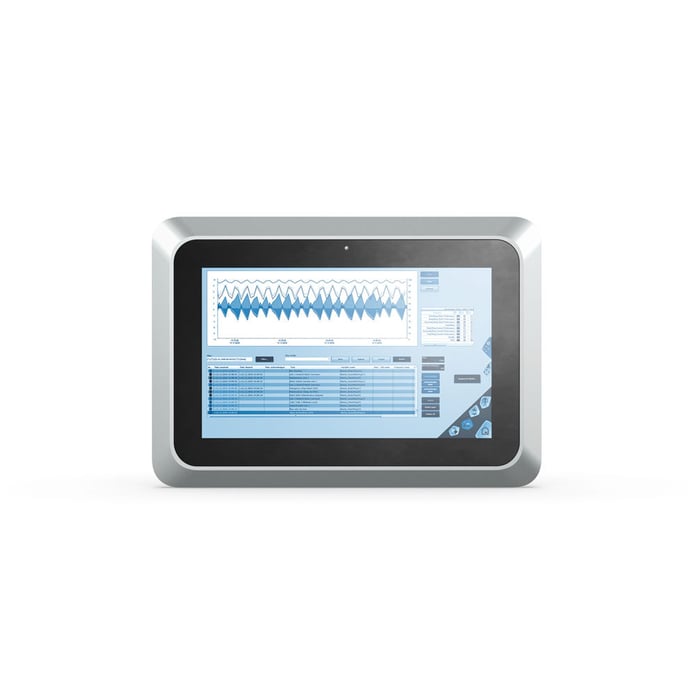

Front
7 inch touch panel eccentric mounting
7 inch touch panel eccentric mounting
7 inch touch panel eccentric mounting
7 inch touch panel eccentric mounting

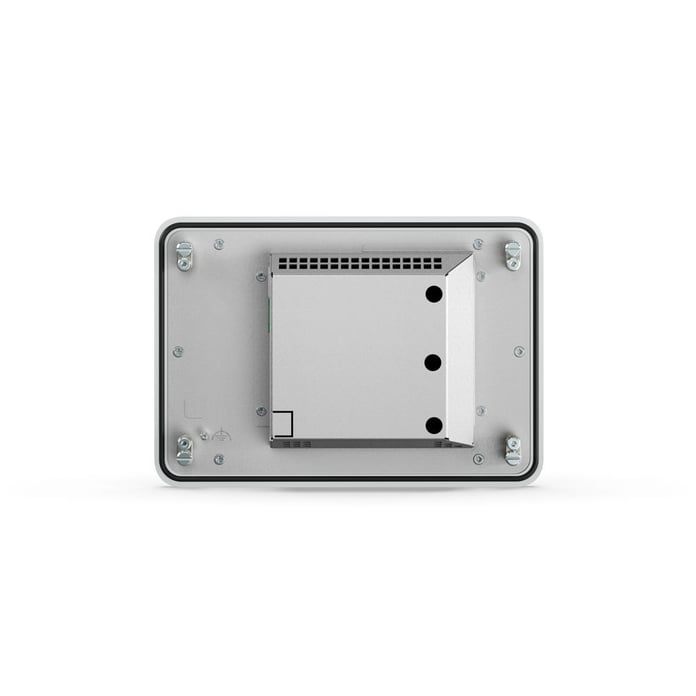

F07A-VI Rear side
7 inch touch panel eccentric mounting
7 inch touch panel eccentric mounting

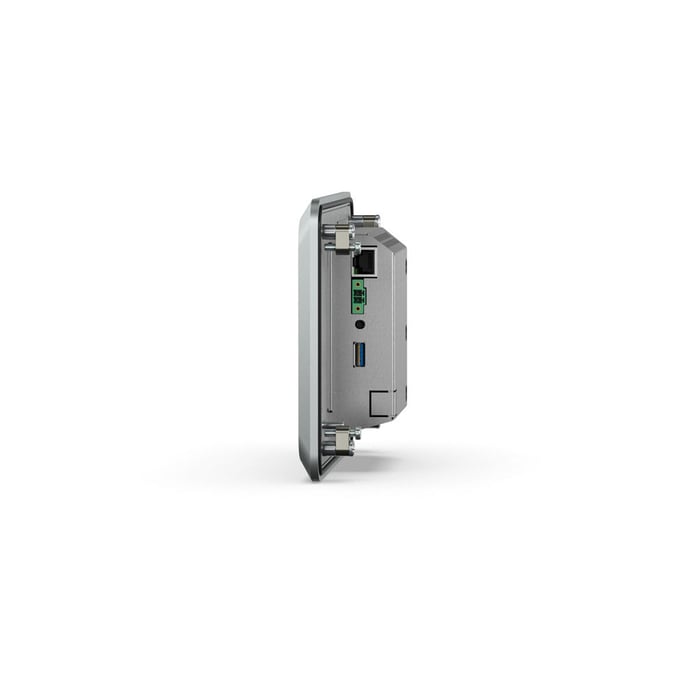

F07A-VI Connection panel
7 inch touch panel eccentric mounting

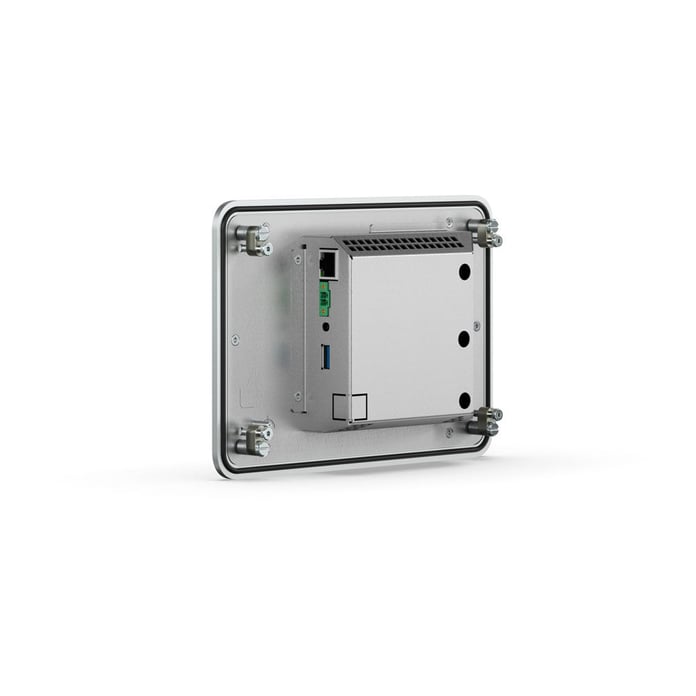

F07A-VI Rear side
Touch display with eccentric

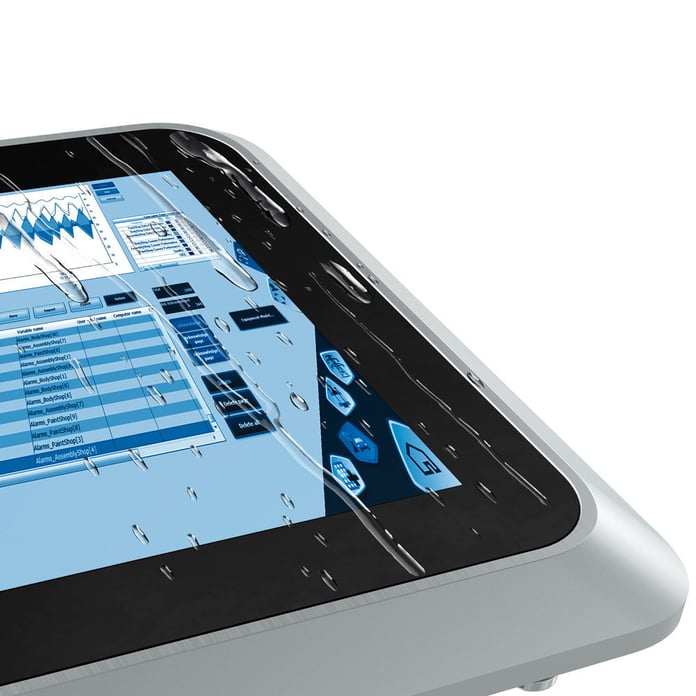

The F07A touch panel is a robust built-in device for installation in a control panel or switchboard. The bright 7-inch widescreen multi-touch display allows precise display and operation of industrial applications in kiosk mode. Optical bonding ensures a sharp and brilliant image, low reflections and an excellent reading angle. The display with capacitive glass touch is seamlessly installed in the milled aluminum front and offers protection class IP65. Beveled edges ensure that dirt is reduced.

Request now Download Datasheet
Learn more about scalable modular system now!

Variants

F07A-VI (Linux Touchpanel) smartstart_pack_transparent200x279

The embedded HMI touch panel as part of the scalable modular system offers many security features and an installation wizard.

F07A-XS (SPS-Bedienpanel) XS-Technologie_Logo_100px

The universal PLC operating panels enable the web-based visualization of common PLC systems, for example from Codesys, Beckhoff or Siemens. The natively integrated MicroBrowser ensures a lightning-fast system start and high performance during operation. The systems are compatible with older solutions that are still based on Java applets - and can replace them as part of a modernization. The F10A-XS can also show any screens of other computers as a client for OPC servers or as a VNC client.

Product information at a glance

Technical data

  • touch panel for panel mounting
  • 7“ LED-TFT , WVGA 800 x 480, 500 cd/m²
  • capacitive multitouch
  • Optical Bonding ensures a sharp and brilliant display image, low reflections and an excellent reading angle
  • panel-mount adapter (eccentric)
  • aluminum front IP65
  • working temperature: 0 up to 50°C
  • storage temperature: 0 up to +70°C
  • relative humidity: 10 up to 90%,
    not condensing
  • power input:
    F07A-XS: 24 VDC and PoE
    IEEE Std 802.3af (Class 0)
    F07A-VI:  24 VDC

Order info

F07A-VI
Embedded HMI Touchpanel, 7" Touch, CPU Board Rockchip RK3399 dual core Cortex A72 + quad-core Cortex A53, 2GB RAM, 32GB eMMC storage, Ethernet 100/1000, Yocto (Linux) as part of the scalable modular system

F07A-XS
PLC-Panel, 10" touch screen, Embedded ARM CPU, Ethernet 10/100, PoE (Class 0), brightness sensors, CodeSys 3.0 support, Real VNC Server Version 5.0.3 compatible, equipped with Image MicroBrowser SpiderControl & CoDeSys v3.x for XS-Technology

Options
KNX-Modul, PoE+ (IEEE Std 802.3at - Class 4)

Customized
For other configurations please ask our system consultants

Operating systems

Yocto (Linux) as part of the scalable modular system
Android on request

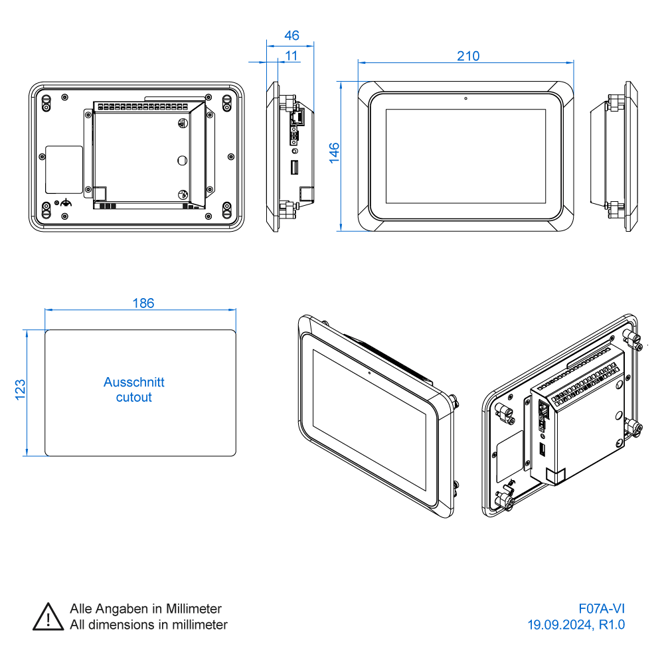

Technical drawing

Downloads
