Touch Panel F16A
-
UL certified
-
rugged system for panel mounting
-
front frame in aluminum with plane continuous glass front and capacitive glass touch, optical bonding
-
also available with extended temperature range
- with pre-installed Webbrowser from scalable modular system

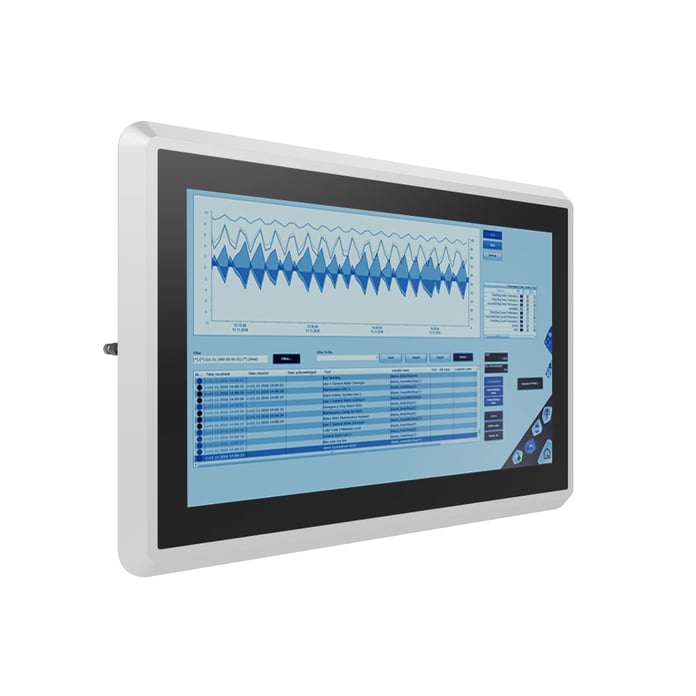

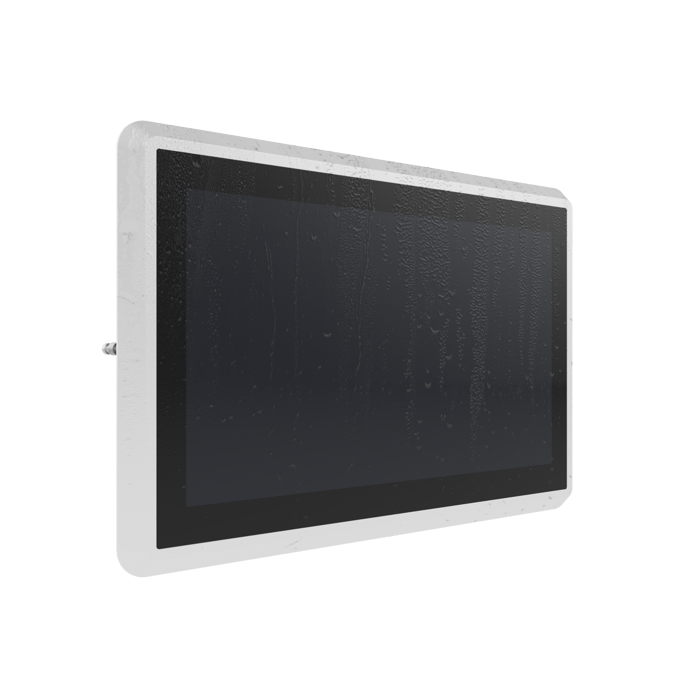

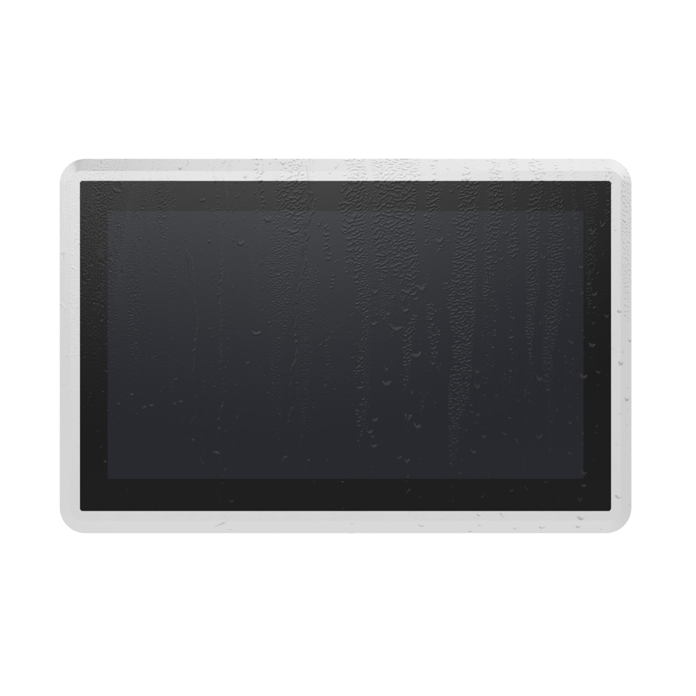

The slim and robust touch panel F16A scores with its continuous glass front in a material mix with anodized aluminum.
The system can be supplied with an extended temperature range of -20°C to 70°C. A status LED with operating status indication is integrated behind the glass on the front side. AS variants are PC-based systems, Android or pure displays available. Alternatively, Yocto from the Linux family is available as part of the scalable modular system.
Variants
F16A-PC (Windows, Linux Touch Panel)
The touch panel PC is suitable wherever powerful applications are to be used under Windows or Linux. Since there are no moving parts such as fans and HDD, the PC is completely maintenance free and designed for continuous operation 24/7/365.
F16A-VI (Android or Linux Touch Panel)
In addition to the PC version, you can use this system with Android operating system. The most common applications can be found in the classic HMI area with user interfaces and visualizations. Alternatively with Yocto as part of the scalable modular system.
F16A-PX (Android Touch Panel - UL Certified)
The F16A-PX is equipped with a HD display and can be used at temperatures between -20°C and 70°C.
F16A-iTFT (Industrial Monitor)
The F16A-iTFT industrial monitor can be used as remote solution with an IPC.
Product information at a glance
Technical data
- touch panel for panel mounting
- 15.6“ LED-TFT,
F16A-VI / F16A-PC / F16A-iTFT: Full HD 1920 x 1080, 400 cd/m²
F16A-PX: HD 1366 x 768, 400 cd/m² - capacitive multitouch (PCT)
- Optical bonding ensures a sharp and brilliant display image, low reflections and an excellent reading angle
- material mix with anodized aluminum
- fanless
- protection class, front: IP65, back: IP20
- individual technical equipment on request
- F16A-XI / F16A-PC / F16A-iTFT:
working temperature: 0 up to 50°C
storage temperature: 0 up to +70°C
relative humidity: 10 to 90%, not condensing
power supply: 24 VDC - F16A-PX:
working temperature: -20 up to 70°C
storage temperature: -20 up to +70°C
relative humidity: 0 to 95%, not condensing - power supply:
F16A-PC / F16A-PX / F16A-iTFT: 24 VDCF16A-VI: 24 VDC und PoE+ IEEE Std 802.3at (Class 4) - weight: 4 kg
Order info
F16A-PC |
Panel PC, 16" touch screen, Board 3.5“ SBC, Intel® Celeron® J6412 |
F16A-VI
|
Android-Panel, 22" Touch, Embedded CPU Board, Rockchip RK3399 dual core Cortex A72+ quad-core Cortex A53, 2GB RAM, 32GB eMMC storage, Ethernet 100/1000, PoE+ |
F16A-PX
|
Android-Panel, Embedded CPU Board PX, Rockchip PX30 Quad-Core CPU 1.5 GHz, 2GB DDR3 SDRAM, 8GB eMMC storage, Status-LED, Android 9 (Pie) |
F16A-iTFT |
Industrial monitor, 22" Touch |
Options |

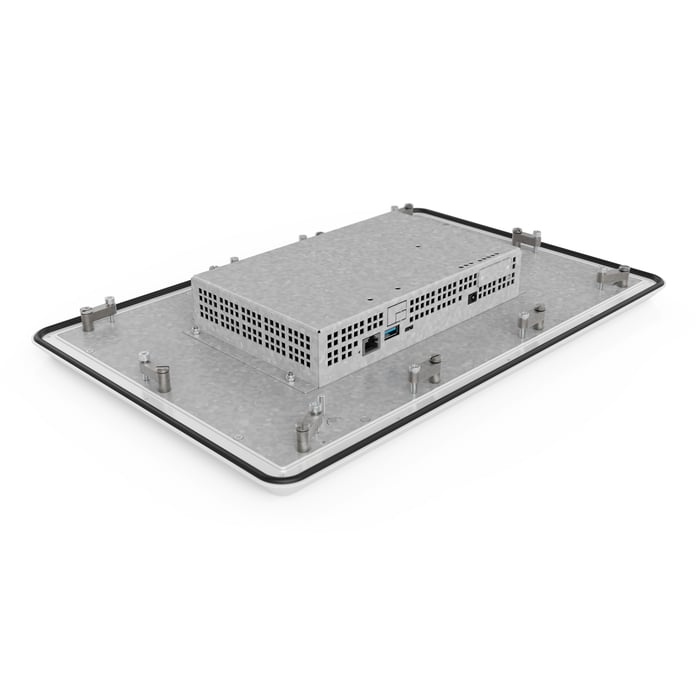

RS-485 interface, second LAN interface - RJ45 or ix Industrial®, WiFi (Bluetooth), KNX, front stainless steel V2A, AutomationBrowser App for Android and MicroBrowser APP for Android Power supply: external plug-in power supply 230 VAC, tci WebWizard, eccentric technology for quick mounting |
Customized |
For other configurations please ask our system consultants |
Operating systems |
Windows 10 IoT LTSC 2021, others on request |

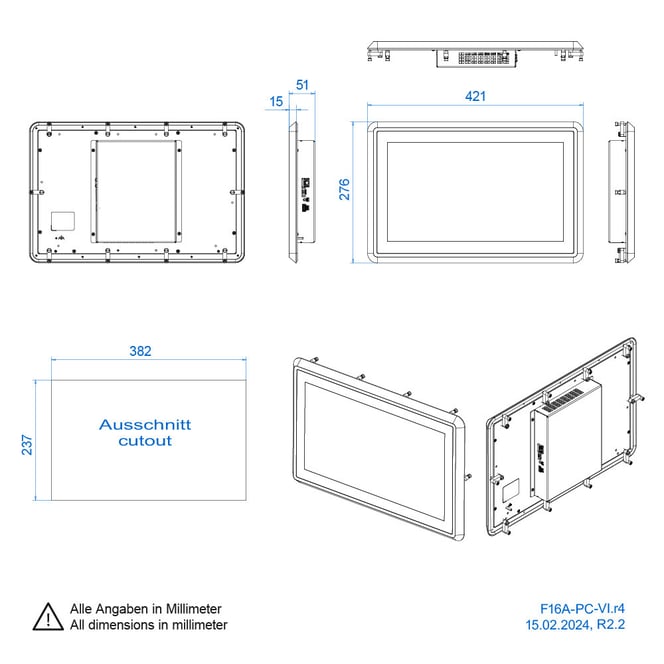

Technical drawing
