Touch-Panel G19A

Touch Panel G19A

  • perfectly flat glass surface
  • capacitive or resistive touch
  • classical 4:3 display
19-inch PLC control panel
19-inch PLC control panel

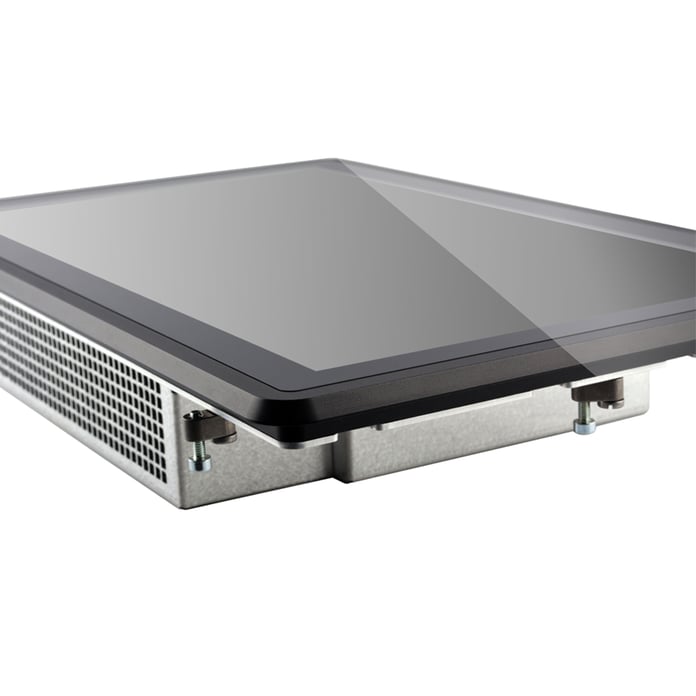

Easy to clean thanks the persistant glass front without joints and edges between the front and display
PLC control panel

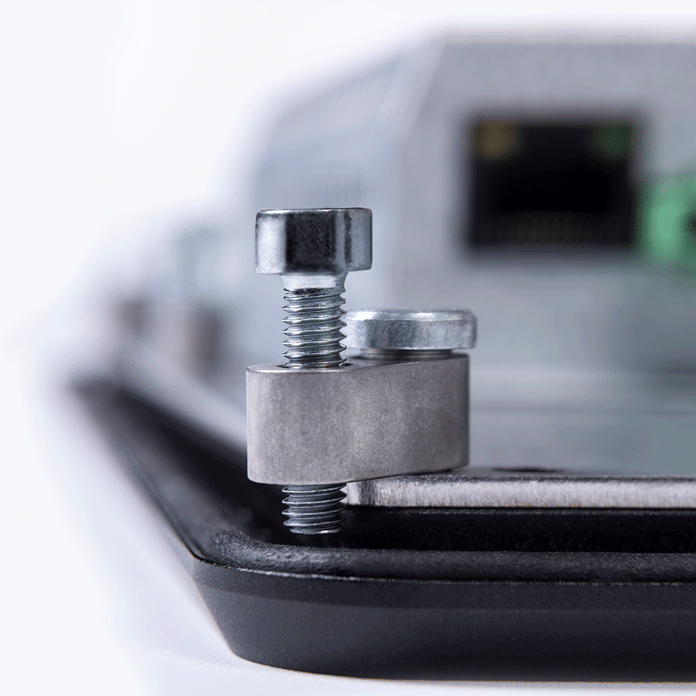

Eccentric tappet technology, fast and easy monting
Hygienic design touch panels

19-Inch-Device with Glass Surface

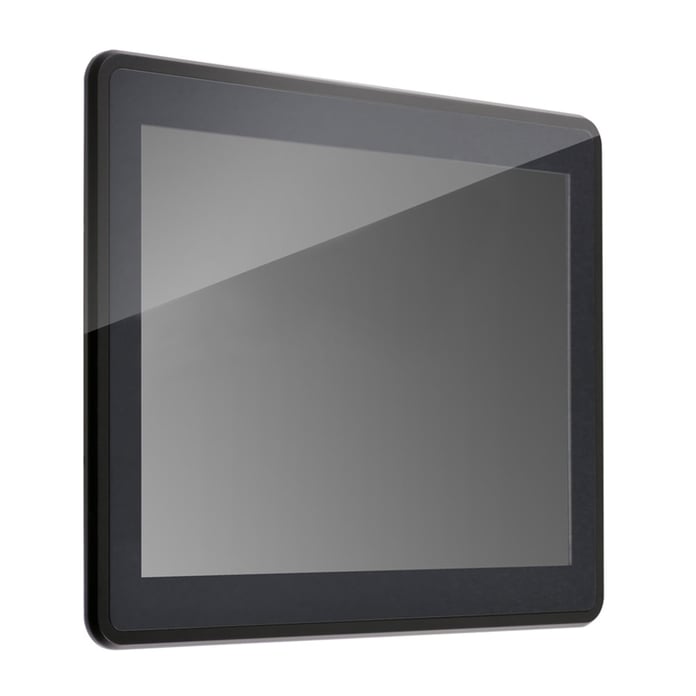

The small and rugged touch panel G19A convinces by its perfectly flat glass surface. The display is equipped with durable LED backlight on its 4:3 display. The display can be chosen as capacitive multitouch with gesture recognition or as a resistive glass touch.

The 19-inch-device is available as G19A-PC and as panel display G19A-iTFT – as energy saving version with Intel Atom- or as high performance version with Intel Core i, which is the new generation.



Different Touch Technologies for Your Application
Advantages of Resistive Glass Touch
  • uncritical with regard to EMC control
  • useable with any glove
  • price / performance ratio
 Advantages of Capacitive Glass Touch
  • operation through approaching - possible without contact
  • useable with a thin latex glove
  • multitouch
Request now Download Datasheet

Variants

G19A-PC (Windows, Linux Touchpanel) windows_logo_60x60px Linux_pinguin_60x69px

Due to its wireless and rugged system configuration G19A-PC is very user friendly. The tci CPU board is available as energy-saving version with Intel Atom or as high performance version with Intel Core i, which is the new generation.

G19A-iTFT (Industrial Monitor)

The industrial monitor G19A-iTFT is very resistive against breakdowns.

Product information at a glance

Technical data

  • panel display for panel mounting
  • 19" LED-TFT, 1280 x 1024
  • front optionally in stainless steel
  • capacitive multi-touch with gesture recognition (PCT) or as a resistive glass-touch
  • protection class IP65 (front side), IP20 (rear side)
  • working temperature: 0 up to 50°C
  • storage temperature: 0 up to 70°C
  • relative humidity:
    Operating: 10 to 80% not condensing
    Storage / Transportation 10 to 90%, not condensing
  • power input: G19A-PC / G19A-iTFT: 24 VDC ​​

Order info

G19A-PC

Panel PC, 19" touch screen, tci-Baseboard Intel Atom “Apollo Lake” Dual Core CPU E3930, 2x 1,8GHz, Intel HD500, 4GB RAM, SSD, dual ethernet
Optional: Board Mini-ITX up to Core i7 (with fan)

G19A-iTFT

Industrial monitor, 19" Touch

Options

RT-Touch resistive glass touch, front optionally in stainless steel

Customized

For other configurations please ask our system consultants

Operating systems

Windows 10 IoT LTSC 2021, others on request

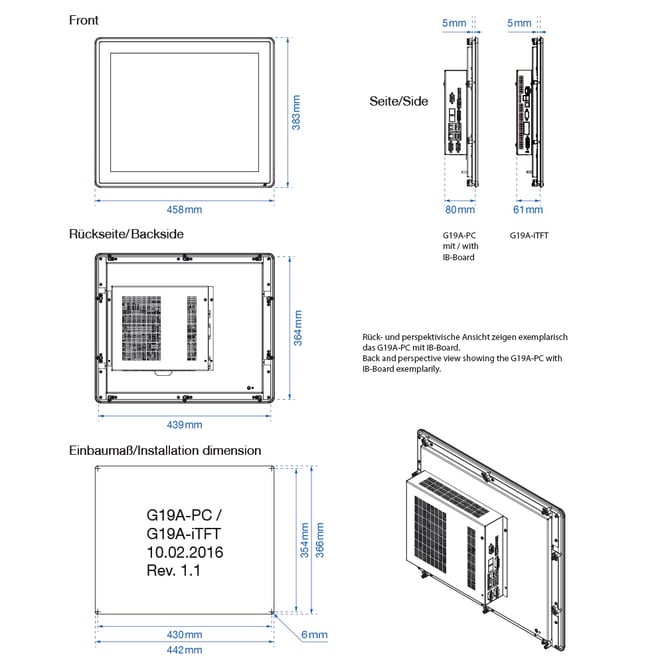

Technical drawing
