luna16-PC

16-inch Windows panel
integrated microphone and speaker with echo canceling
4 mounting options: flush-mounted, flush-mounted, surface-mounted, conference table housing

16 inch touch panel PC building control — luna16-PC

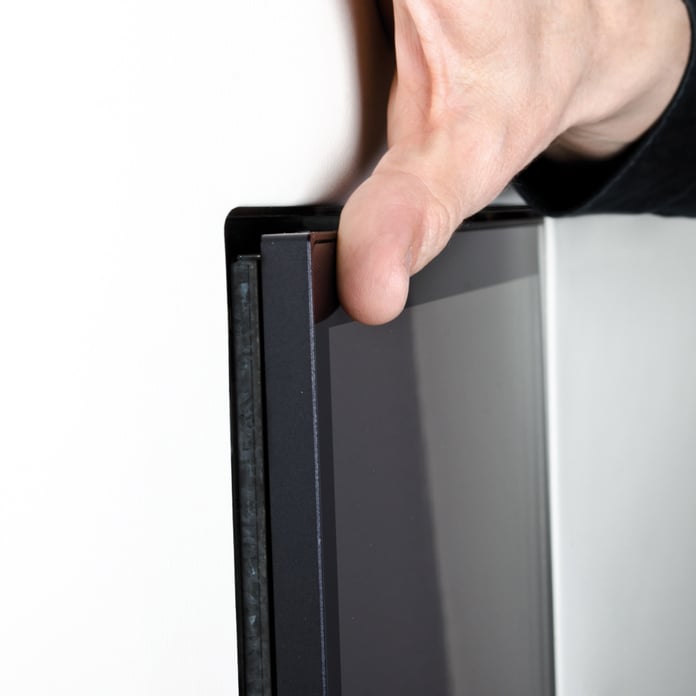

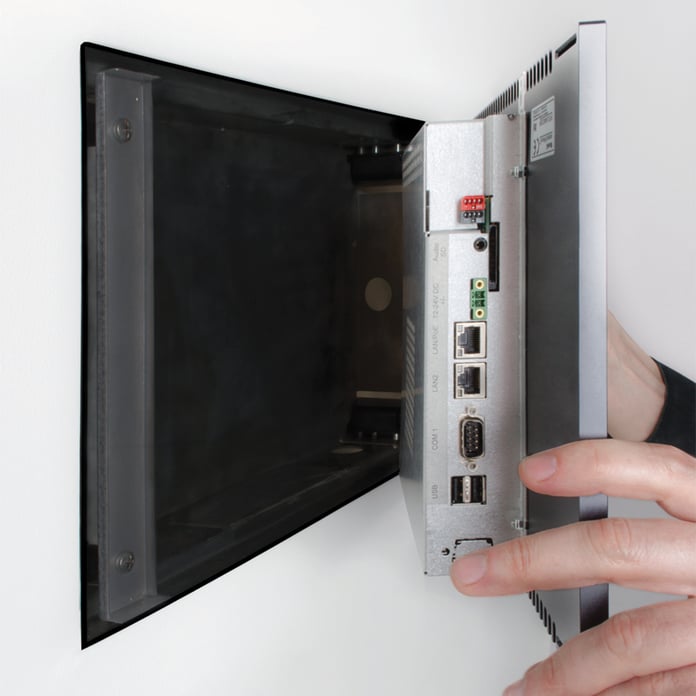

Touch panel for building automation, easy to install — Mounting: very easy - the touch panel is pushed onto the provided support. [Figure luna-PC]

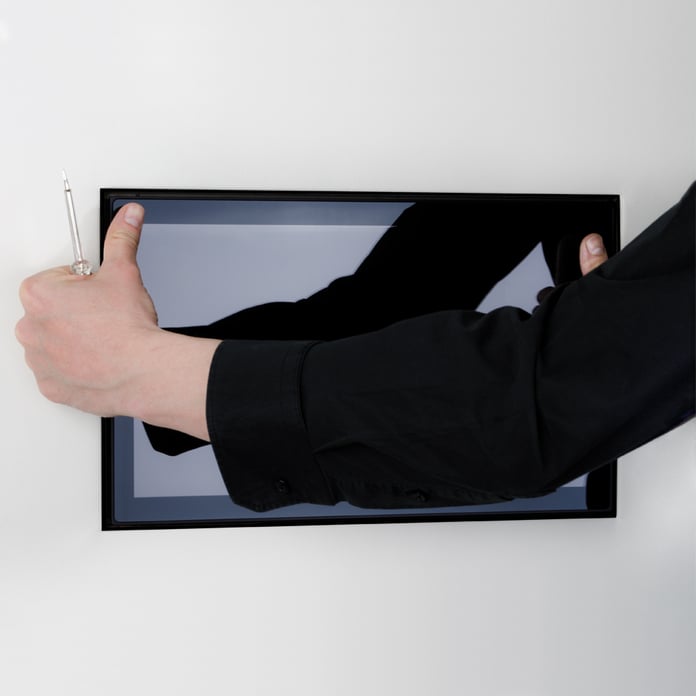

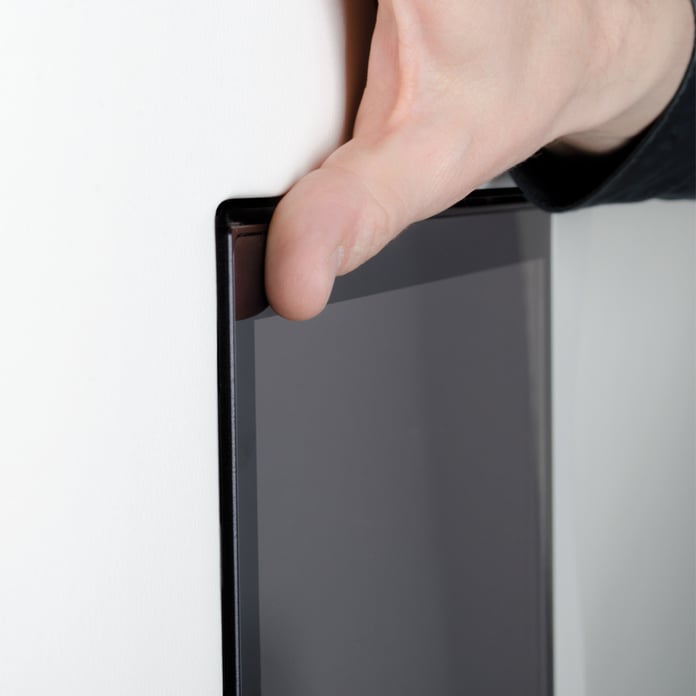

Flush touch panel for building automation — luna integrates flush and harmoniously into the wall

Android touch panel for building automation 7-inch — luna connection Kit

22 inch touch panel PC building control — With the fanless tci-baseboard are available 2x LAN, 2x USB and KNX

luna16-PC is easy to handle due to multitouch. The integrated microphone and the speaker with echo canceling enables freehand talking in high audio quality. Aside from the luna16-PC version there is also the android-based version, luna16-VI, available. Therefore the touchpanels are suitable for different applications like building automation, conference technology and digital signs.

luna can be built-in box (UPG) or flush into the wall (EPG). Particularly the flush mounted version fulfills the esthetic requirements of modern architecture. Another mounting possibility is surface mounting (APG), which is especially suitable for walls, that shouldn’t be renovated, for example exposed concrete or historical timbered houses. The desktop unit (KTG) is the perfect equipment for conference rooms to control the AV-technology or the lighting as well as for receptions or for entrance areas.

Request now Download Datasheet

Variants

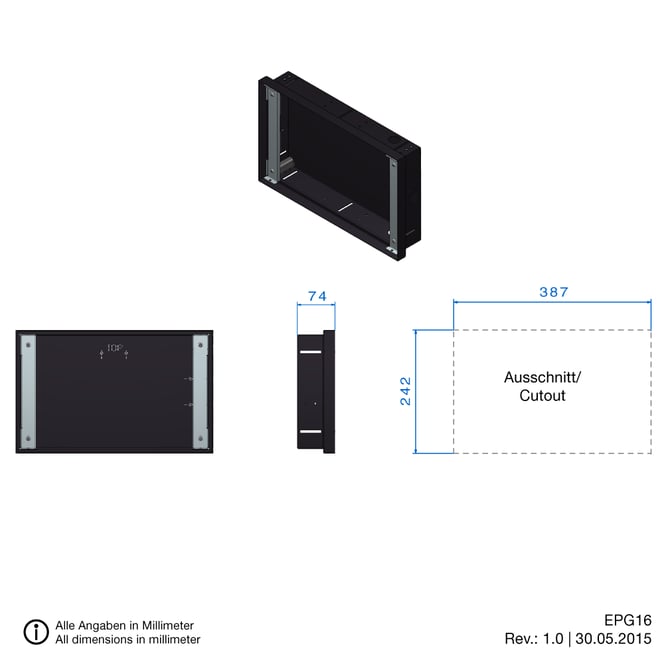

Installation into EPG

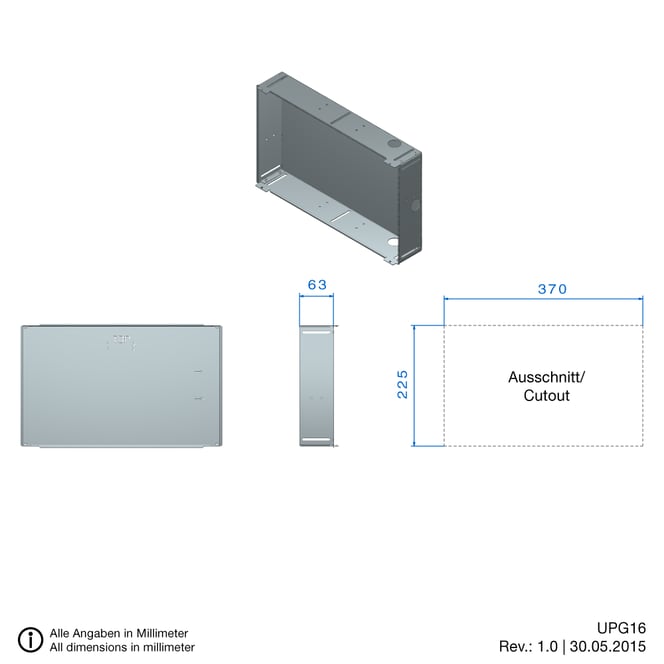

Installation into UPG

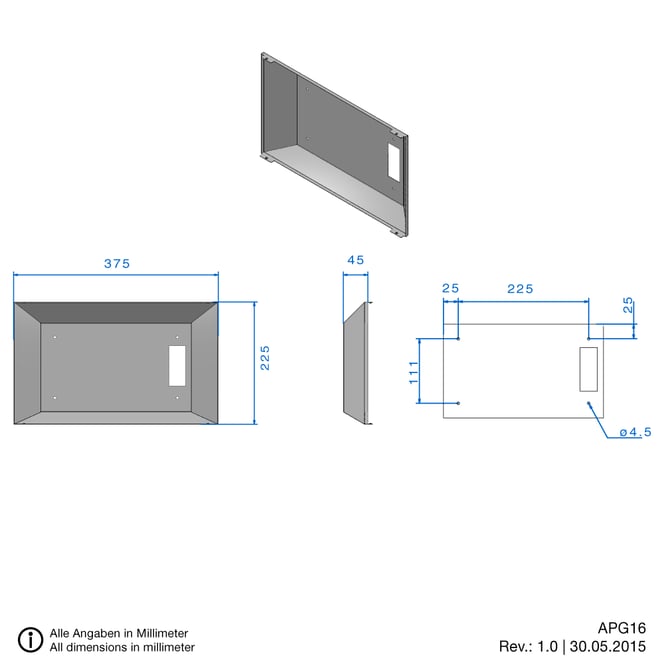

Installation into APG

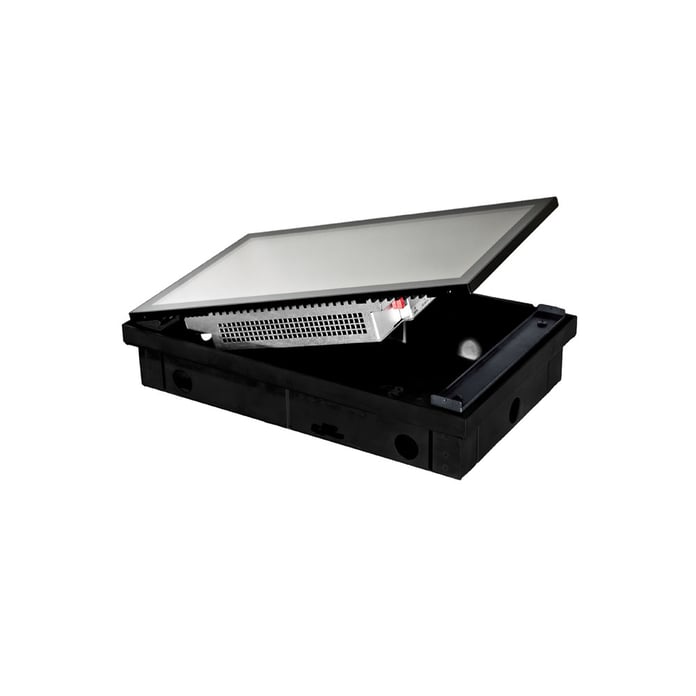

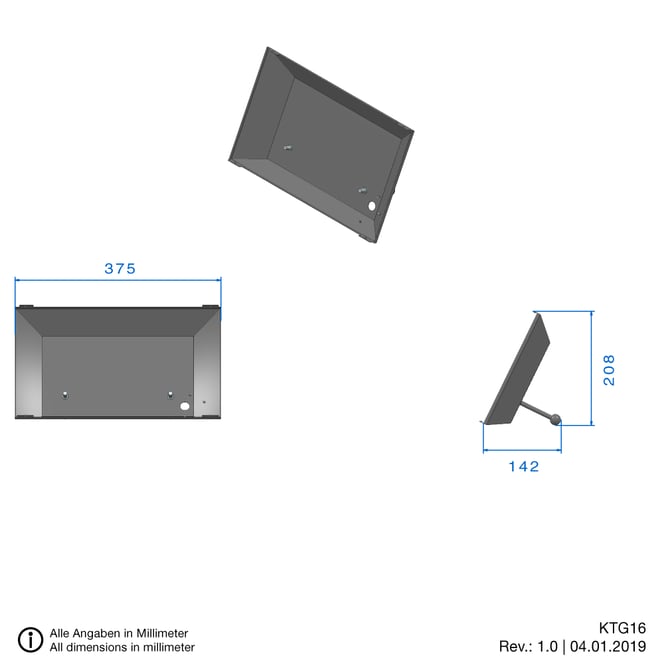

Installation into KTG

These images show the luna10 in different installation situations

Product information at a glance

Technical data

touch panel for building automation

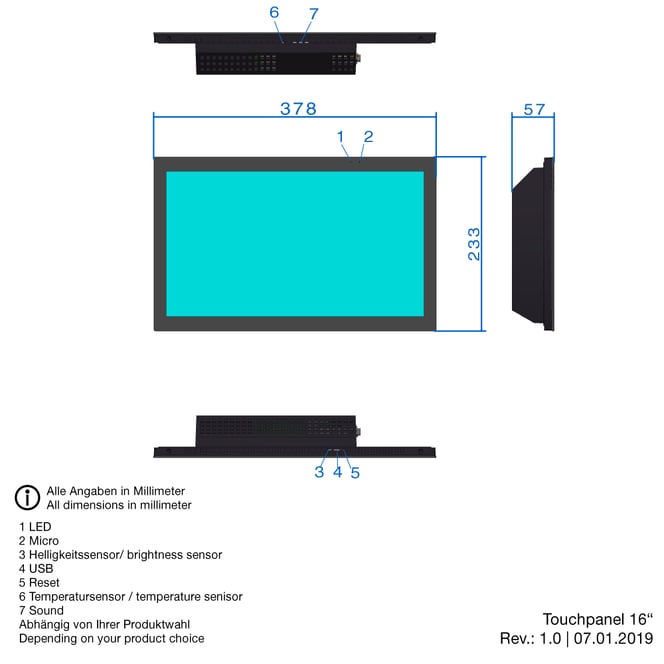

16" multitouch panel with continuous glass surface, Full-HD 1920*1080, 425 cd/m²
128GB SSD
PoE+

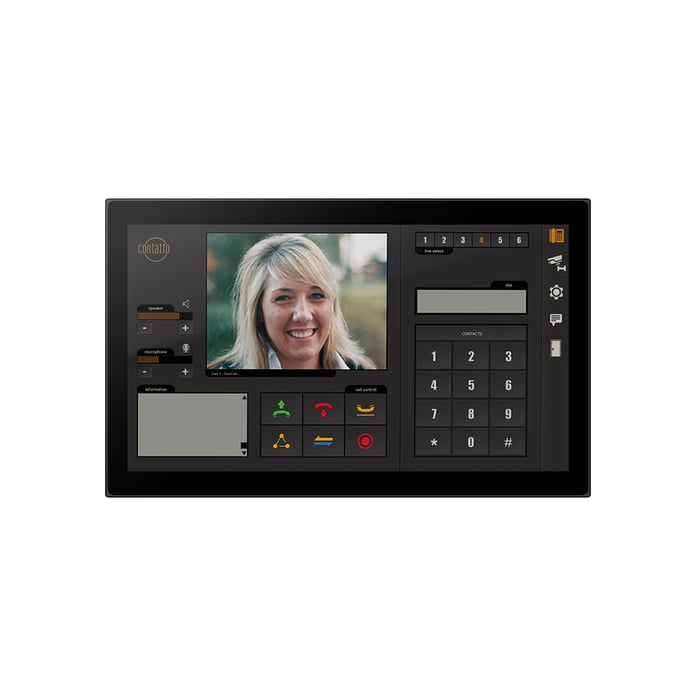

ICOM: composite unit with integrated echo compensation for full-duplex audio communication, contatto FlatClient Extended

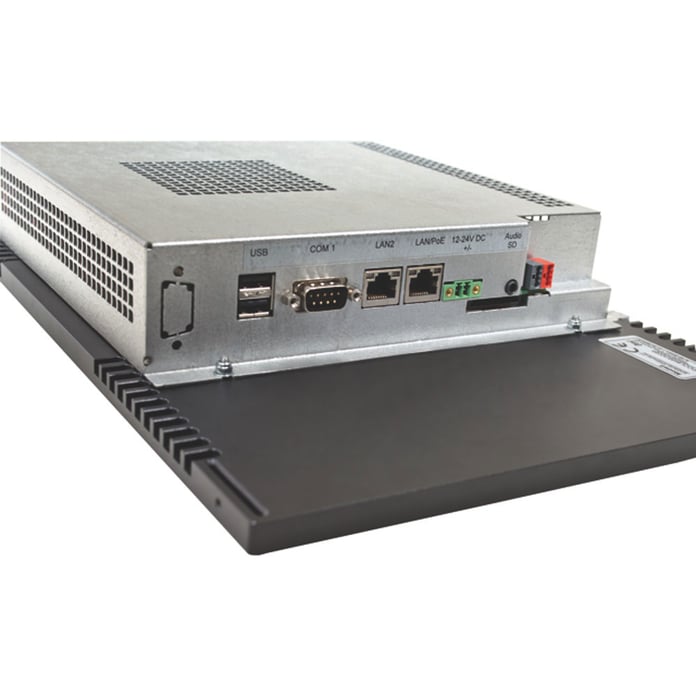

Interfaces: Dual Gigabit Ethernet, 2x USB2.0
fanless
working temperature: 0 up to 35°C
storage temperature: -20 up to 60°C
relative humidity: 10 up to 80%, not condensing
power input: 24 VDC and PoE+

IEEE Std 802.3at (Class 4)

Order info

luna16-PC	16" touch Full-HD 1920*1080, tci-Baseboard Intel Atom “Apollo Lake” Dual Core CPU E3930, 2x 1,8GHz, Intel HD500, 4GB RAM, 128GB SSD, KNX (optional), ICOM, PoE+ (class 4), contatto FlatClient Extended (VoIP/SIP Client), Windows 10 IoT LTSC 2021 Design: black
Additional equipment
Operating systems	Linux Ubuntu 16.04.2 LTS
pureKNX-App	Visualization app for display and operation of the pureKNX building control system. Only devices with the same display size and mounting position can display the pureKNX visualisation
BBoardKNX	Integrate interface board, installation bus EIB/KNX, indirectly coupled, protocol EMI 1

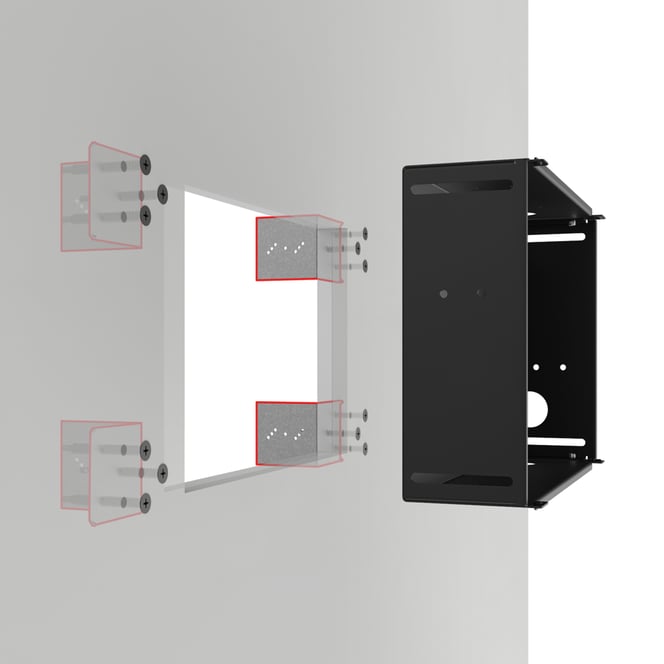

Mounting	EPG - Built-in box for flush mounting (including HMK) UPG - Built-in box (optionally with HMK) APG - Housing for on wall installation KTG-IP - Housing for conference table. Interface IP (RJ45), power supply only via PoE+ (IEEE 802.3at) MONT(R2) - Mounting support set with straight plates for plastering HMK - Cavity wall mounting kit consisting of bracket and installation template

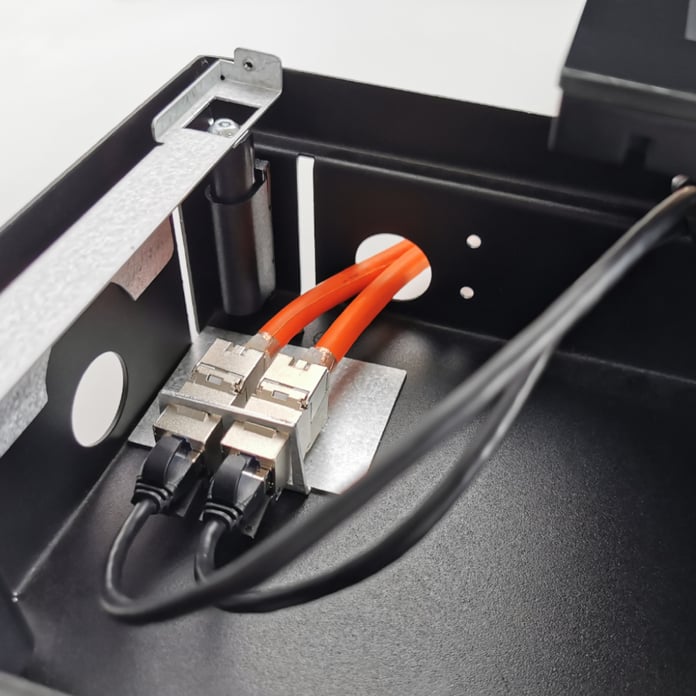

luna Connection Kit	Bracket for up to two Keystone RJ45 Slim Modules Included in delivery - 1x keystone adapter and connection cable set Can be used for UPG and EPG
NT-HUT-24VDC-100W	External top hat rail power supply, primary 85-264 VAC, secondary 24 VDC, 100W- 4DU
contatto	LobbyClient

Power consumption

Operating status	P in W
Operate under full load, display max. brightness	16,8
Operate under Idle-Loop, display max. brightness	10,8
Operate, display off	5,3
Standby	1,1
Shutdown	0,9
