Touch-Panel G07T

Touch-Panel G07T

  • fully enclosed plastic housing in IP65
  • fanless and maintenance-free
  • perfectly plan 7" resistive touch
  • with preinstalled Software Suite
7-inch PLC control panel support arm
7-inch PLC control panel support arm
Continuous completely flat front with 7 " resistive touch
7-inch PLC control panel support arm IP65
All around closed plastic housing according IP65
7-inch PLC control panel support arm IP65
Small design, ideal for panel mounting or mounting arm support
7-inch PLC control panel VESA75
Easy mounting to VESA 75 support
7-inch PLC control panel VESA75
1 cable solution: power input over LAN with PoE or LAN with 24 VDC
7-inch PLC control panel VESA75
Protected coupling IP68 for connecting cable
7-inch PLC control panel IP protection
An integrated front LED indicates the current status of the G07T
7-inch touch panel with bumper
Putting in a bumper made of silicone
7-inch touch panel with bumper
Bumper made of silicone

Rugged 7-inch Terminal

The web terminal G07T is a 7-inch touchpanel with resistive touch. The fully enclosed plastic housing is robust and certified for protection class IP65. This system is as PLC-Panel G07T-XS available.



Request now Download Datasheet
Learn more about Software Suite now!

Variants

G07T-XS (PLC control panel) XS-Technologie_Logo_100px

The optimal combination of MicroBrowser and hardware is described in "XS-Technology" and ensures a fast system start and high performance during the operation. XS systems can be used as clients for OPC servers or can display any screens of other computers with the VNC client.

In addition to the CoDeSys web visualization controls from Saia, Phoenix Contact (ILC 1x0, ILC3x0), Panasonic (FP web server), Sabo, Schleicher (XCN), Siemens (CP 243/343/443 with webserver), Beckhoff (CX x000), Wago (750-841 , 750-871) and Beck IPC (CoDeSys) supported.

Product information at a glance

Technical data

  • Touch Panel for panel mounting or mounting arm
  • 7" TFT, 800 x 480
  • resistive touch
  • protection class IP65 all oround
  • working temperature: 0 up to +50°C
  • storage temperature: -10 up to +70°C
  • relative humidity: 10 to 80%, not condensing
  • power input:  24 VDC or PoE
    IEEE Std 802.3af (Class 0)

Order info

G07T-XS

PLC Panel, 7" touch , embedded ARM CPU, ethernet 10/100, PoE (class 0), brightness sensors, VNC, CodeSys 3.0 support, equipped with Image MicroBrowser SpiderControl & CoDeSys v3.x for XS-Technology

Options

G07T-Case: Silicone bumper

Customized

For other configurations please ask our system consultants

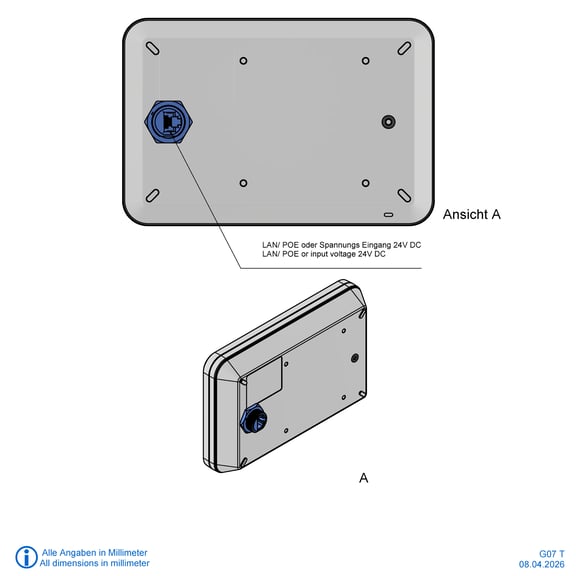

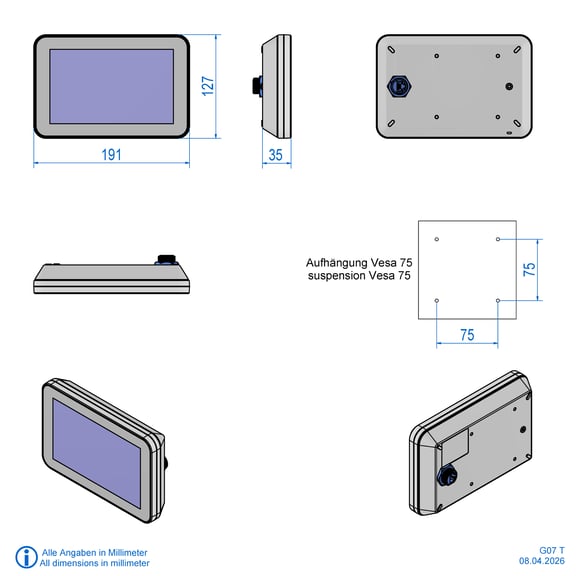

Technical drawing
