luna22-VI

luna22-VI

  • 22-inch Android panel
  • integrated microphone and speaker with echo canceling
  • 2 mounting options: flush-mounted, flush-mounted
Android touch panel for building automation 22 inches
luna22-VI
Touch panel for building automation, easy to install
Mounting: very easy - the touch panel is pushed onto the provided support. [Figure luna-PC]
Flush touch panel for building automation
luna integrates flush and harmoniously into the wall
Touch panel for building automation, easy to install
The touch panel is mounted on the support in tci EPG with 4 screws
Touch panel for building automation, easy to install
By lightly pressure the touch panel slides into the built-in box
Touch panel for building automation, easy to install
luna in the EPG: robust tci-built-in box with powder coated surface. Side-mounted slots provide flexibility to wall mounting, in addition have on each side several options to insert the cable
Android touch panel for building automation 7-inch
luna connection Kit
Android touch panel for building automation
Android connection ports
Touch panel for building automation, easy to install
Two mounting options are possible. Example top: UPG - built-in box Example bottom: EPG - built-in box for flush mounting

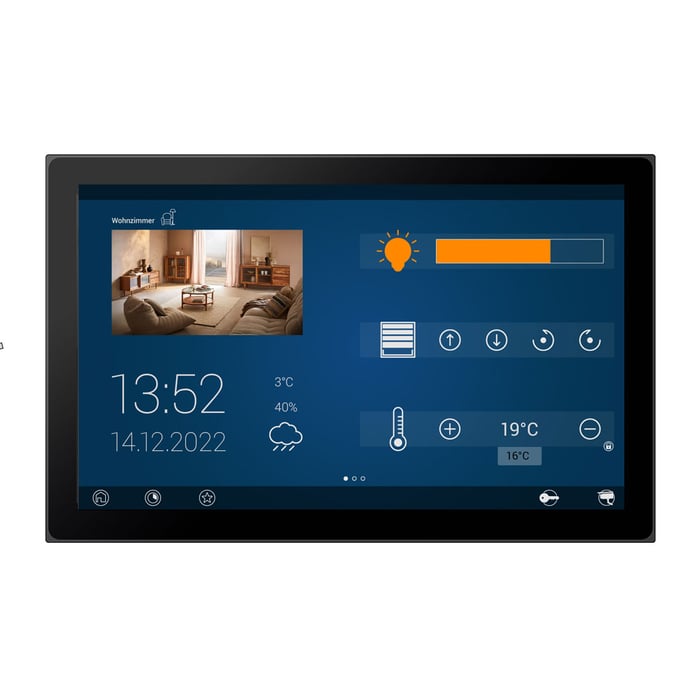

luna22-VI is based on android technology, reflects elegant and timeless design and convinces due to its performant hardware for building automation. The capacitive multitouch displays with 22 inches Full-HD is luminous and user-friendly. In addition to the Android version, a PC-based solution is available. The integrated microphone and the speaker with echo canceling enables freehand talking in high audio quality. In addition to Android, Yocto from the Linux family is available as part of the scalable module system.

luna can be built-in box (UPG) or flush into the wall (EPG). Particularly the flush mounted version fulfills the esthetic requirements of modern architecture.

Request now Download Datasheet
Learn more about Software Suite now!

Variants

Imagebild-10Zoll-EPG2_300x300

                     Installation into EPG

Imagebild-10Zoll-UPG_300x300

                  Installation into UPG

These images show the luna10 in different installation situations

Product information at a glance

Technical data

  • 22" multitouch panel with continuous glass surface, 250 cd/m², 1920 x 1080
  • tci-embedded Board VI.r4
  • Rockchip RK3399 Hexa-Core CPU
  • 2GB RAM
  • 32GB eMMC
  • ICOM: composite unit with integrated echo compensation for full-duplex audio communication
  • Integrated speaker
  • Ethernet 100/1000
  • USB2.0
  • working temperature: 0 up to 35°C
  • storage temperature: -20 up to 60°C
  • relative humidity: 10 up to 80%, not condensing
  • power input: 24 VDC

Order info

luna22-VI

22" multitouch panel with continuous glass surface, 1920 x 1080 Full HD, 250 cd/m², embedded Board VI.r4, Rockchip RK3399 Hexa-Core CPU, 2GB RAM, 32GB eMMC, integrated speaker, Ethernet 100/1000, USB2.0, ICOM, Android 9 (Pie)
Design: black

Additional equipment



Operating systems
Android 9

Mounting

EPG - Built-in box for flush mounting (including HMK)
UPG - Built-in box (optionally with HMK)
MONT(R2) - Mounting support set with straight plates for plastering
HMK - Cavity wall mounting kit consisting of bracket and installation template

luna Connection Kit

Bracket for up to two Keystone RJ45 Slim Modules.
Included in delivery - 1x keystone adapter and connection cable set.
Can be used for UPG and EPG

NT-HUT-24VDC-100W

External top hat rail power supply, primary 85-264 VAC, secondary 24 VDC, 100W, 4DU

Power consumption

Operating status

P in W

Operate under full load, display max. brightness

29,5

Operate under Idle-Loop, display max. brightness

24,7

Operate, display off

2,4

Shutdown

0,5
