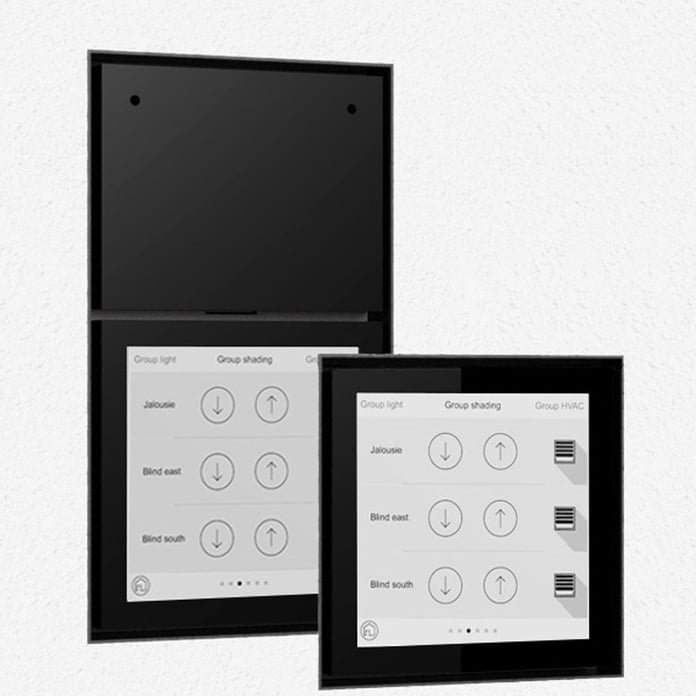

Roomcontroller solo

Room Control reduced to the maximum

fits into standard flush-mounted box
with temperature sensor
individual user interface

Smart switch standard flush-mounted box — solo+ flush mounting in the EPG

Wherever a standard switch fits, it also fits solo – the intelligent replacement for conventional KNX switches. This gives you a control element that not only impresses with its elegant design, but also impresses with its comprehensive functionality.

The touch surface with a 4-inch diagonal can also be operated without contact using gestures. It can installed in a standard built-in box or in built-in box for flush mounting (EPG). Thanks to the integrated temperature sensor, solo saves a separate room thermostat.

For anything less you should not feel satisfied:

elegant design with a frameless real glass front
latest browser technology
anti-theft installation
brightness sensor to control the light intensity
individual surface for an unmistakable design

With solo you can implement customized operating concepts for your customers. Essential functions in the room, such as switching the light on and off, controlling the shading or specifying the room temperature, are directly available with solo.

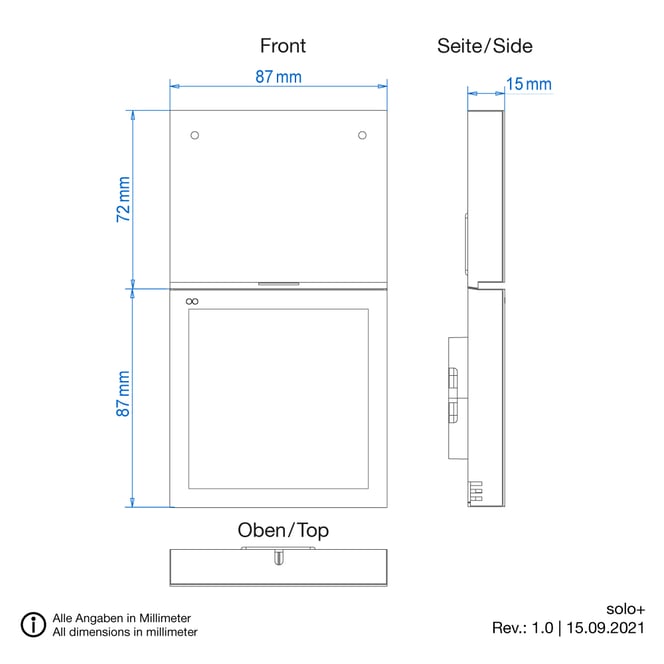

Extended functions with solo+

integrated air quality sensor (temperature, humidity, air quality, air pressure)
as video intercom for door communication
WLAN - ideal for retrofitting
locally and useable without a cloud

Diverse application possibilities

Smart Home
house building
hotels and conference rooms
offices and trade

Request now Download Datasheet

Learn more about WebWizard now!

Variants

Poduktbild_Solo_mitBildschirminhalt_UPG-2

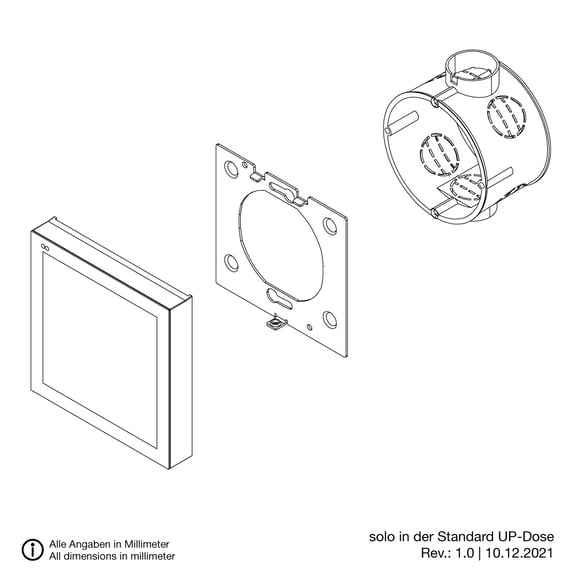

Mounting in a standard built-in box

Poduktbild_Solo_mitBildschirminhalt_EPG-2

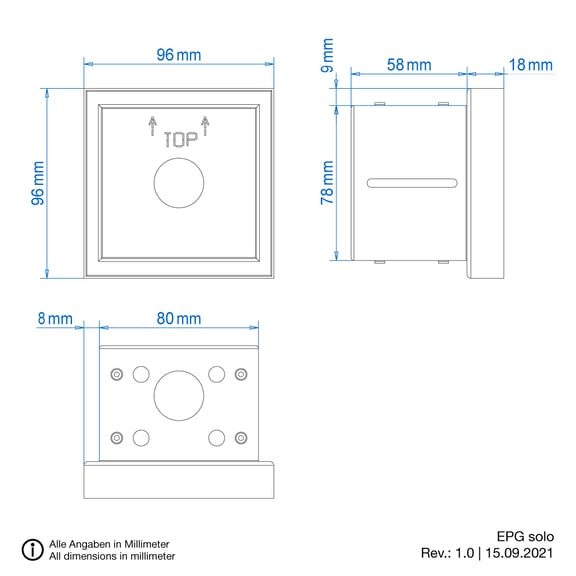

Mounting in EPG

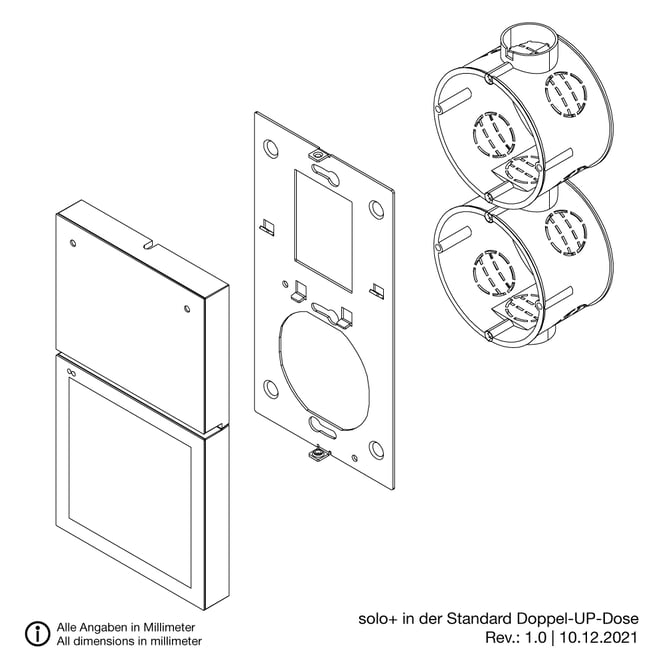

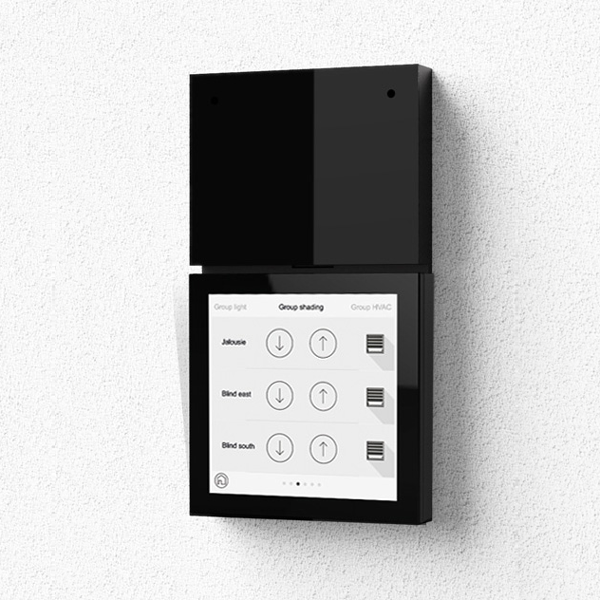

solo+: Mounting in a standard double socket

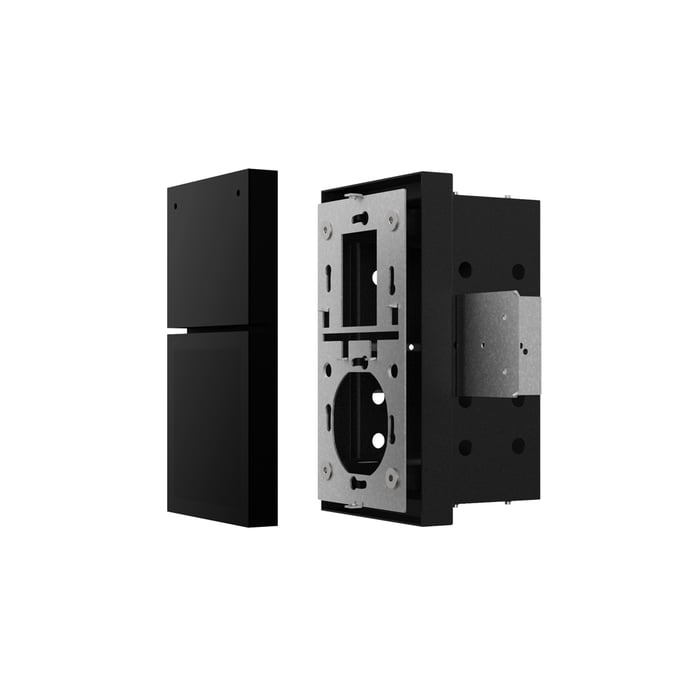

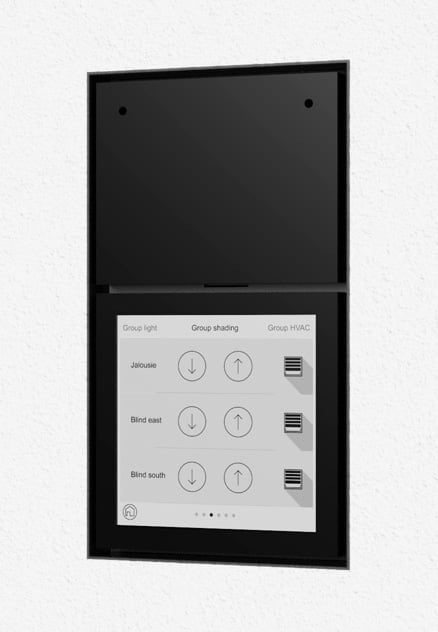

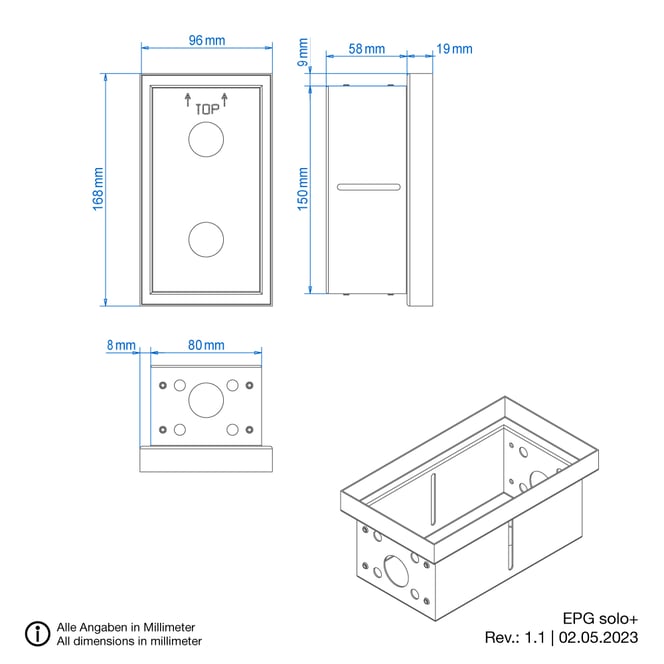

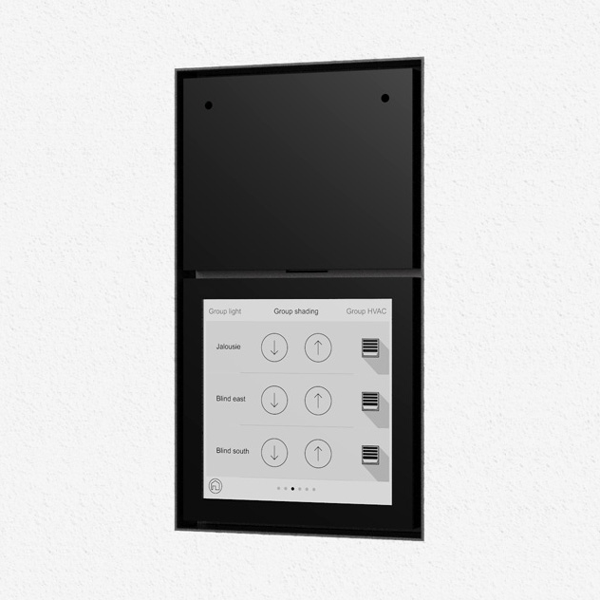

solo+: Mounting in EPG

Product information at a glance

Technical data

roomcontroller for building automation
4“ multitouch with continuous glass surface, 300cd / m²
embedded VI Board
rockchip RK3288 CPU
IP20
PoE
ethernet 10/100
1x Micro USB
temperature sensor and connection for temperature sensor
optional: KNX
optional: RS-485
working temperature: 0 bis 35°C
storage temperature: -20 bis 70°C
relative humidity: 10 up to 80%, not condensing
power input: 24 VDC and PoE

IEEE Std 802.3af (Class 0)

Order info

solo	Roomcontroller / touch switch with 4 "multi-touch, continuous glass surface, Android 9 (Pie) with the WebWizard installed Design: black
solo+	Roomcontroller as solo expanded with integrated air quality sensor, video intercom for door communication, WLAN
Additional equipment
Operating systems	Linux (Version on request)
Mounting	EPG - Built-in box for flush mounting (including HMK) EPG for solo+ - Built-in box for flush mounting (including HMK)
