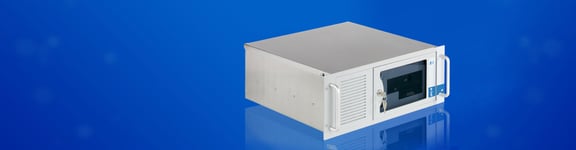

Rack PC IPC-B and IPC-ECO

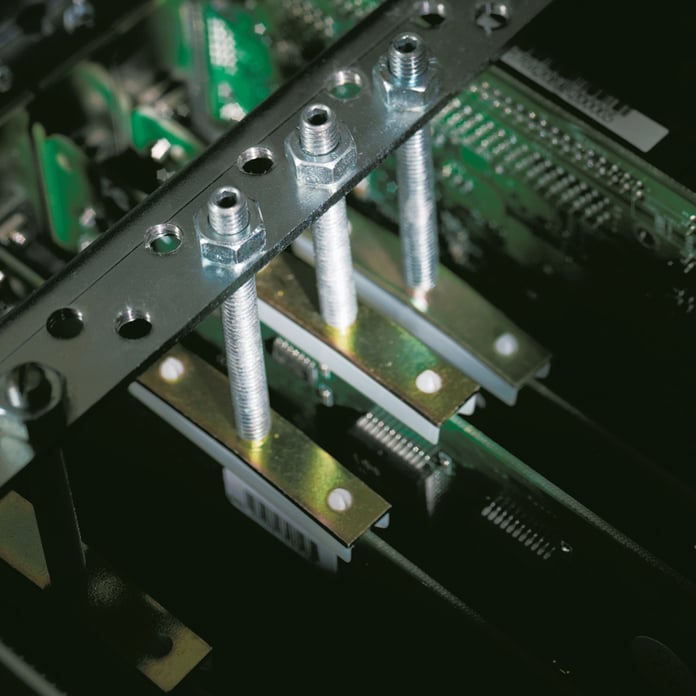

- up to 14 slots (backplane)
- small installation depth 430mm (IPC-B)
- industrial design

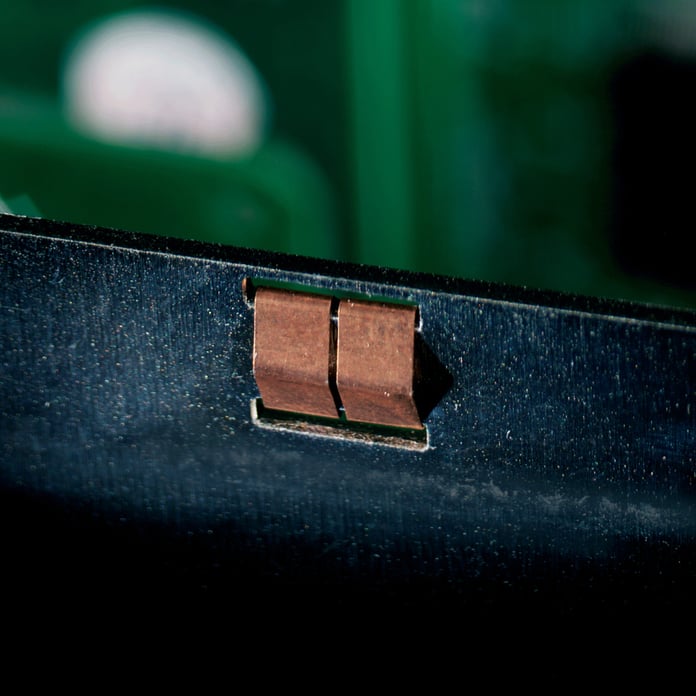

With the IPC-B and the IPC-ECO, two systems are available as 19-inch servers for use in industrial applications. Up to 14 slots are provided for a variety of plug-in cards, and the systems can also be used as a raid with several SSDs for high data security. Extensive measures have been taken to ensure EMC safety, e.g. beryllium springs and HF seals. This makes the IPC-B particularly suitable for measurement technology and electromagnetically contaminated environments. The positive pressure ventilation ensures that the housing is free of dust thanks to a filter mat that can be changed from the outside without tools.
Product information at a glance
Technical data

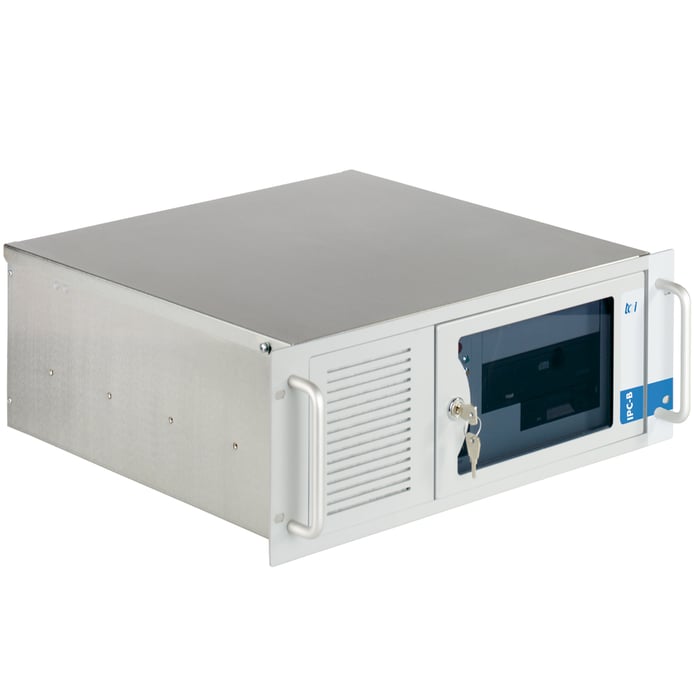

IPC-B
-
size: 4 U, 430 mm depth
-
easy mounting from motherboard or passive backplane
-
mounting possibility for 2x 5.25“ and 2x 3.5“ (optional 3 x 3.5“) drives
-

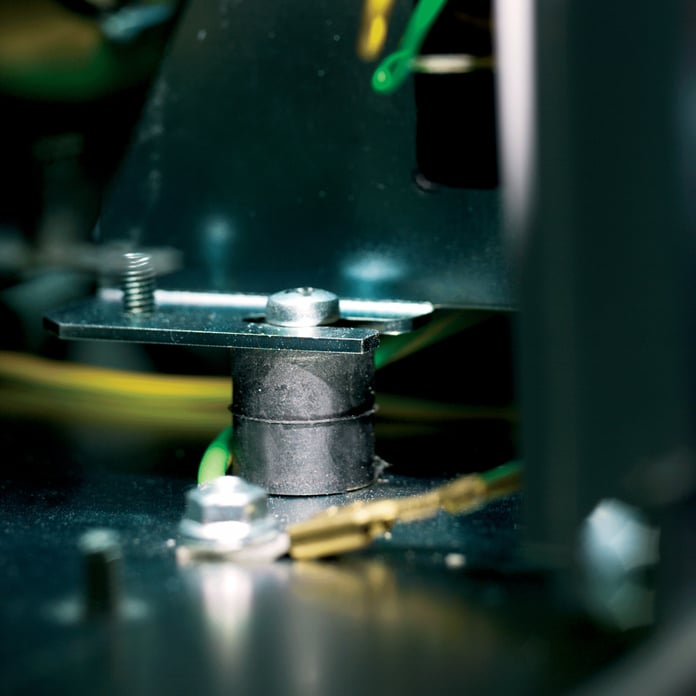

drives on shockmounts
-

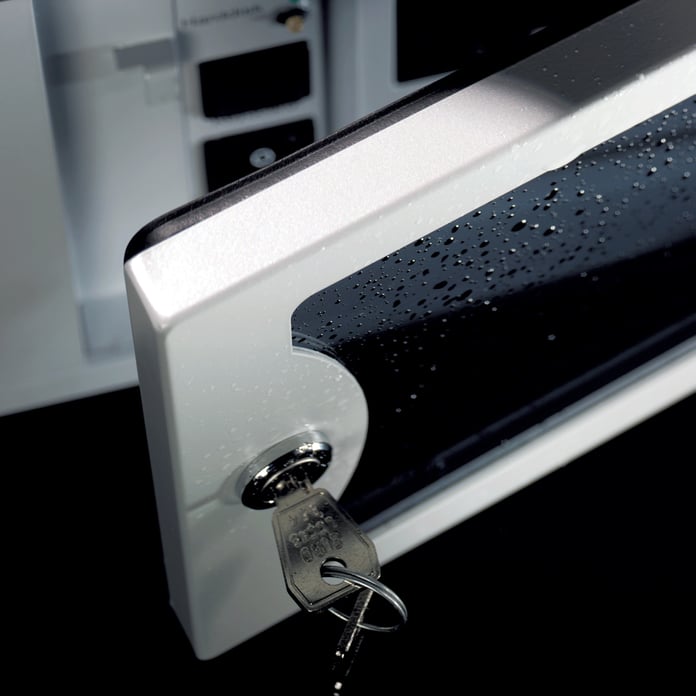

lockable, splash-proof front door with built in acrylic plastic pane (smoked glass)
-
overpressure in the chassis ensured through a powerful fans. The van absorbs fresh air from the front. Therefore, the internal space is dust-proteced.
-
optional temperature-controlled fan
-
industrial sheet steel housing, front panel and door powder-coated RAL 9006
-
power supply from 350 watts - 100-240 VAC, optionally redundant or DC

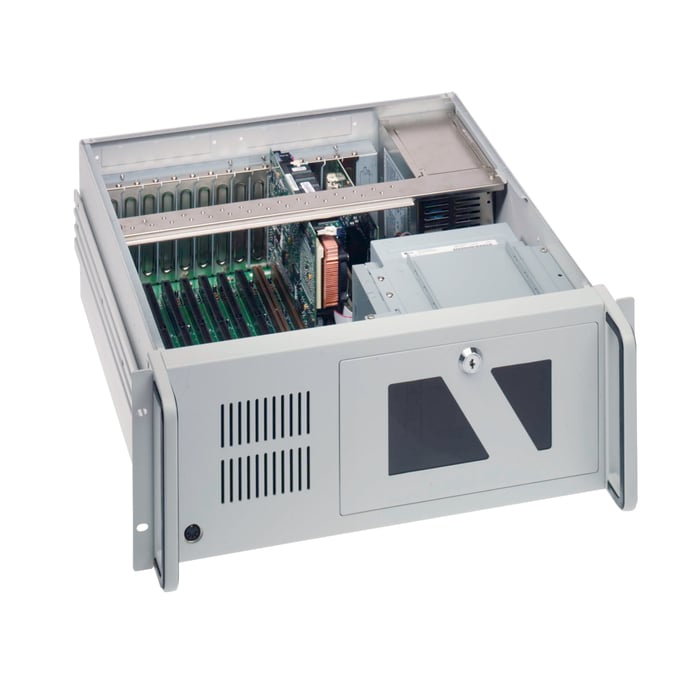

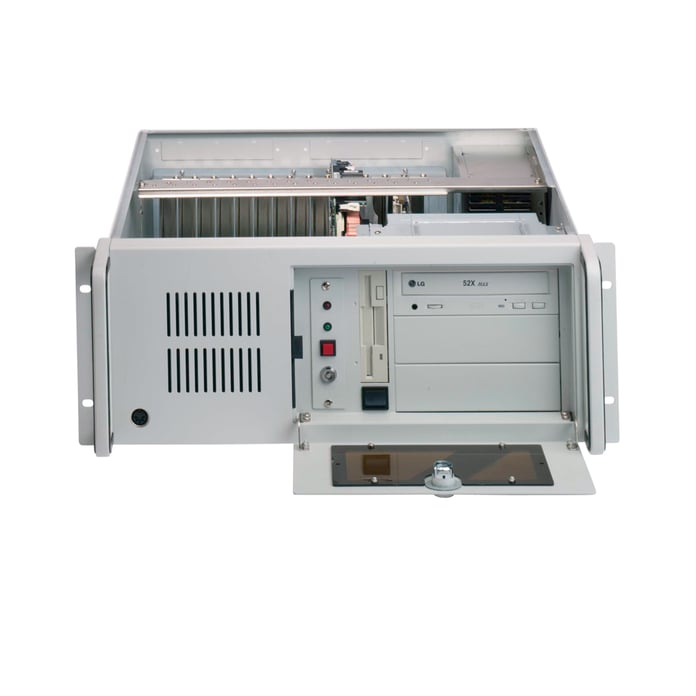

IPC-ECO
-
size: 4 U, 450 mm depth
-
ATX-Motherboard or Slot-CPU
-
ATX-Motherboard or 14-Slot Backplane
-
free slots:
-
IPC-E5/ATX: 4x PCI
-
IPC-E5/PCI: 13x PCI or 13x ISA
-
usability depending on technical equipment
-
mounting possibilities for 3x 5.25" external, 1x 3.5" external and 1x 3.5" internal or
-
5x 3.5" external und 1x 3.5" internal
-
drives on shockmounts
-
lockable front door with built in acrylic-plastic pane
-

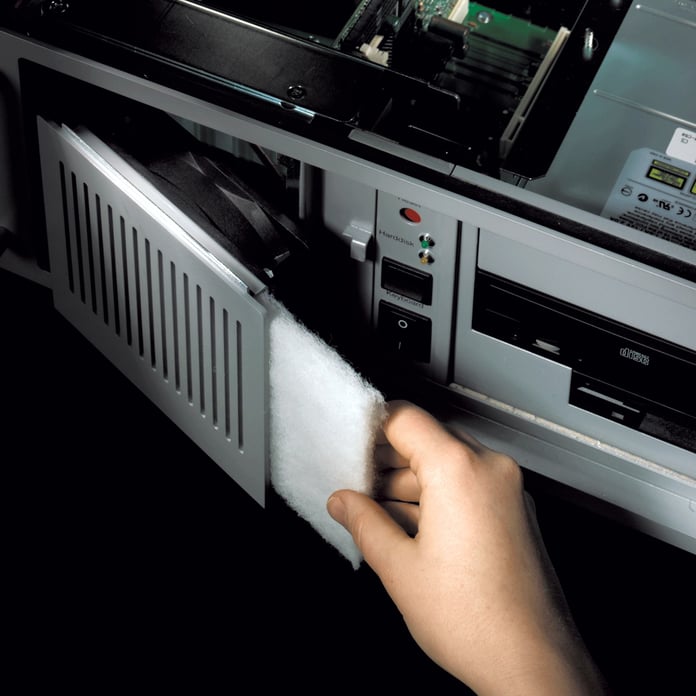

overpressure in the housing through a powerful fan, which has a replaceable filter mat for a dust-protected interior
-
power supply from 350 watts - 100-240 VAC, optionally redundant or DC
-
working temperature: 0 up to +50°C
-
storage temperature: -20 up to +60°C
-
relative humidity:10 to 80% not condensingStorage / Transportation 10 to 90%, not condensing
-
power supply: 230 VAC
-
weight: 14/13 kg
Order info
PC-B/PCI |
Industrial PC for 19" rack mounting with backplane up to 14 expansion slots, slot CPU card |
IPC-B/ATX |
Industrial PC for 19" rack mounting with ATX motherboard, up to 7 slots |
IPC-ECO/PCI |
Industrial PC for 19" rack mounting with backplane up to 14 expansion slots, slot CPU card |
IPC-ECO/ATX |
Industrial PC for 19" rack mounting with ATX motherboard, up to 7 slots |
Options |
CPU performance up to current core technology, internal UPS, 5.25", 300 VA |
Customized |
For other configurations please ask our system consultants |
Operating systems |
Windows 10 Iot Enterprise LTSC 2021, others on request |

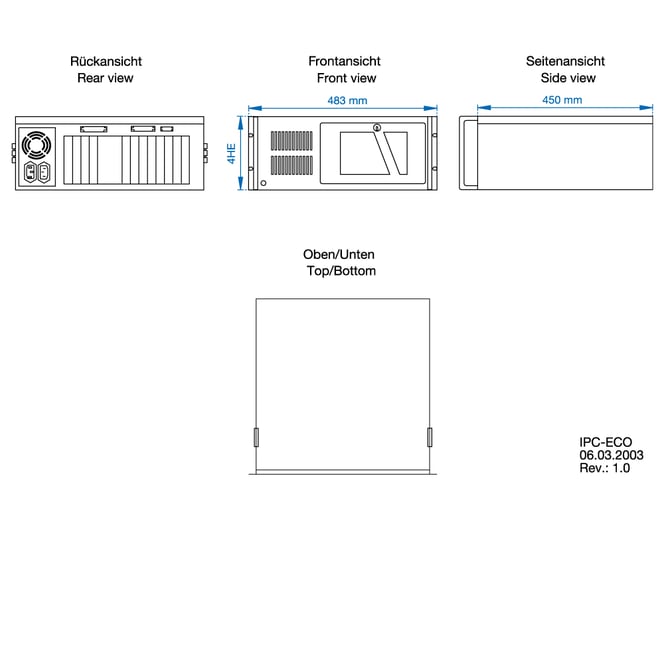

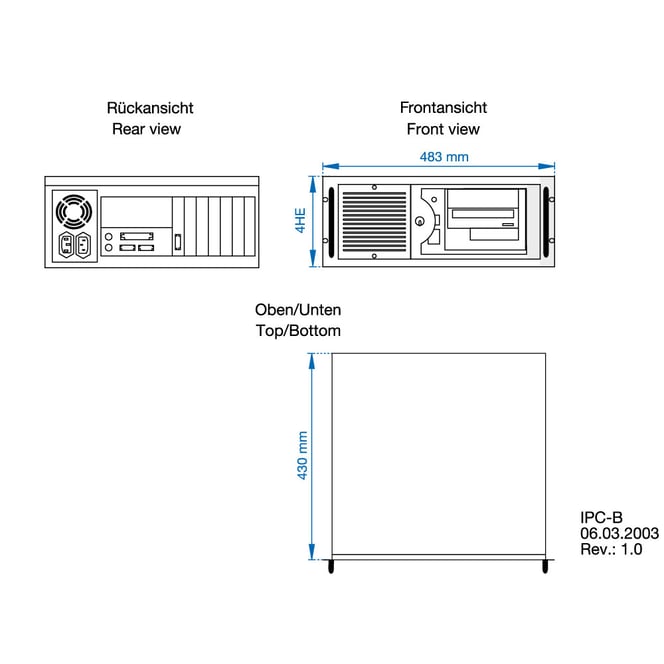

Technical drawing
