F16T-PX-Plus
- outdoor HMI can be operated in any climate and weather
- operating temperature -40 to +70°C
- system monitor:
Safety before starting and during operation thanks to dew point monitor and heating
Protection against overheating, Protection against condensation damage - adjustable sun hood with anti-glare protection
Outdoor Touch Panel
The slim and robust touch panel F16T-PX-Plus is fully enclosed and prepared for mounting arm installation. The continuous glass front in a material mix with anodized aluminum offers reliable protection in industrial use.
System monitor
The outdoor touch panel is perfectly equipped for any temperature or environment. A specially developed safety system consisting of sensors, such as the active dew point monitor, and heating enable safe operation even at 100% condensing humidity and from -40 to +70°C. Already at the start it is checked whether the climatic conditions allow a safe start and operation. Successfully tested according to DIN 75220.

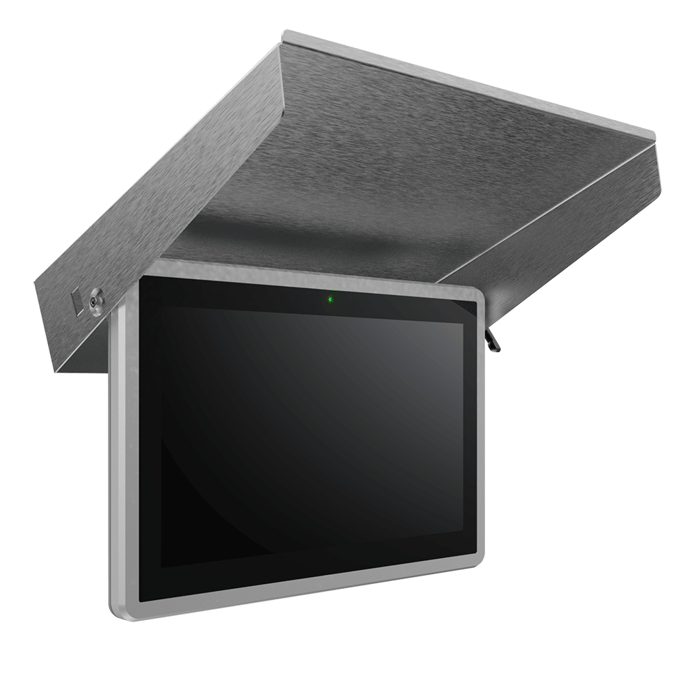

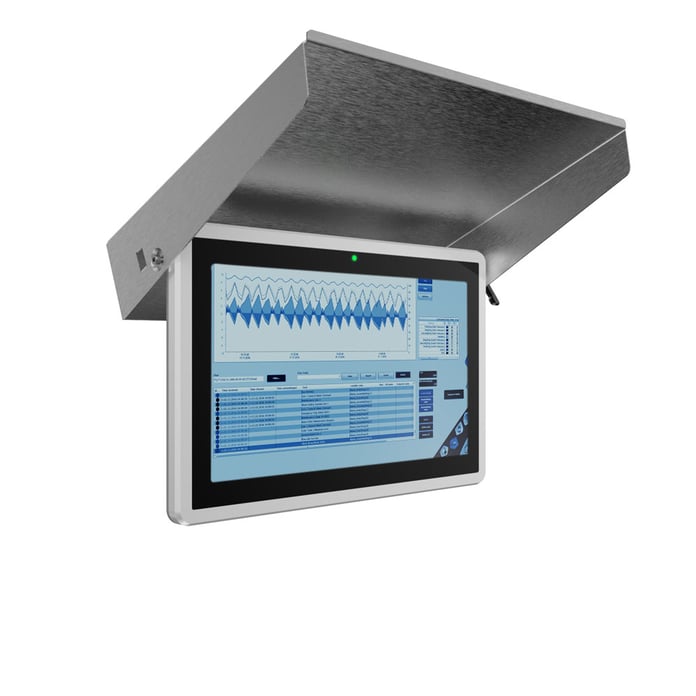

Even in extremely hot regions - even in direct sunlight - the excess temperature monitoring and the folding and tilting sun protection hood ensure maximum operational safety.
A status LED with operating status display is integrated behind the glass at the front.
Thanks to the Android operating system, the touch panels are the ideal basis for your web-based application as HMI or for visualization.
Product information at a glance
Technical data
-
touch panel for mounting arm
-
15.6“ LED-TFT, HD 1366*768, 400 cd/m²
-
capacitive multitouch (PCT)
-
material mix with anodized aluminum
-
fanless
-
protection class IP65 all around
-

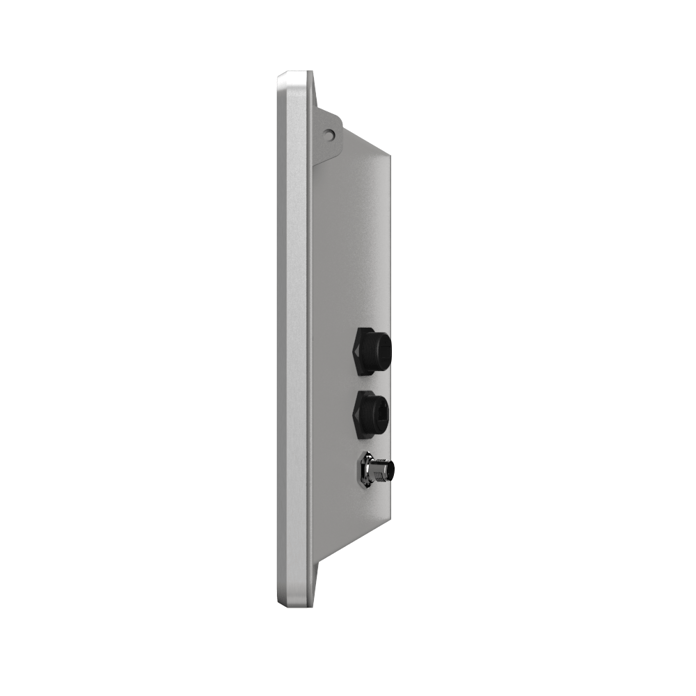

IP69K protected connection fields for USB, LAN and power supply (M12)
-
individual technical equipment on request
-
UL certified
-
working temperature: -40 up to +70°C
-
storage temperature: -40 up to +70°C
-
relative humidity: 0 up to 100%
-
power supply: 24 VDC
Order info
F16T-PX-Plus
|

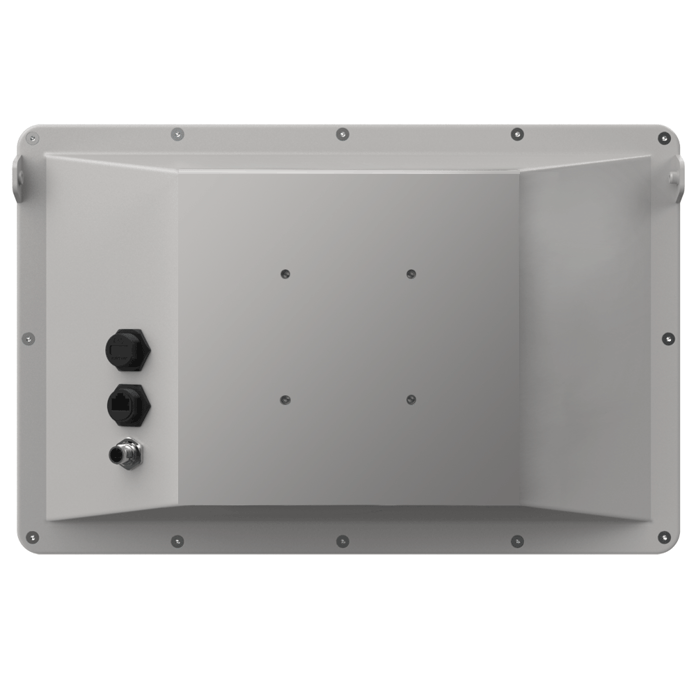

Android-Panel, Embedded CPU Board, Rockchip PX30 Quad-Core CPU 1.5 GHz, 2GB DDR3 SDRAM, 8GB eMMC storage, Status-LED, housing hood VESA75, IP protected connections with protective caps 1x RJ45 und 1x USB-A, heating and dew point monitor for outdoor use, Android 9 (Pie) |
Options |
Cable protection for LAN cables with RJ45 connectors for crimping, AutomationBrowser App for Android and MicroBrowser APP for Android, tci WebWizard |
Customized |
For other configurations please ask our system consultants |
Operating systems |
Android, Linux |

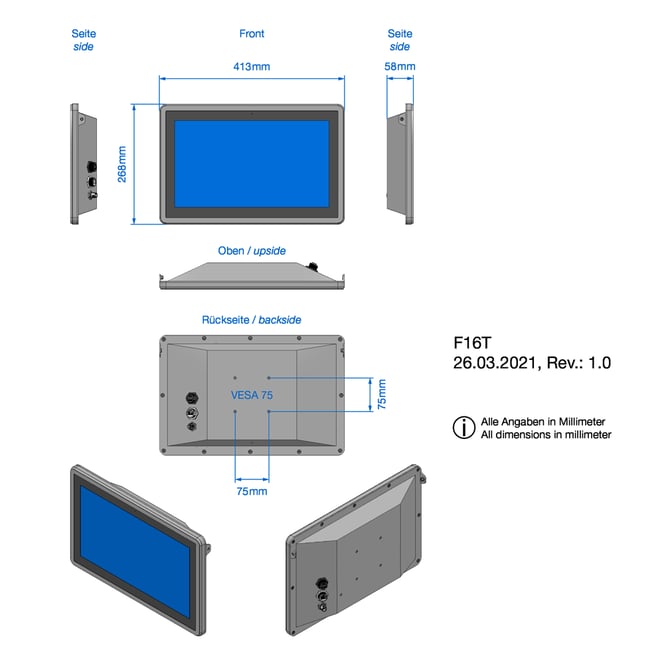

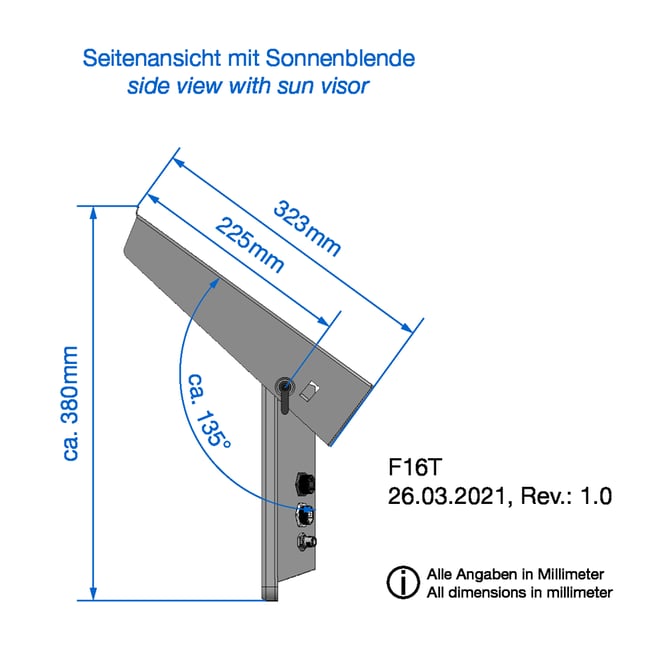

Technical drawing
