Web-Panel
A Web-Panel is used for the visualization of system controls. Various software applications can be used for this. With the tci WebWizard without exception, all visualizations in HTML5 format can be displayed in kiosk mode and operated via touch. If a PLC (programmable logic controller) is to be displayed with the configured web visualization, the tci web panel, based on XS technology, can be used with the MicroBrowser from ininet. The Automationbrowser also offers further options for applications with data logging, for example.
Overview of the software features
WebWizard |
MicroBrowser |
AutomationBrowser |
|
License |
free |
fee based |
fee based |
Pre-installiert |
yes |
optionally |
optionally |
Setup-wizard |
yes |
no |
no |
HTML5 |
yes |
no |
yes |
Updateable |
yes |
yes |
yes |
Kiosk-Mode |
yes |
yes |
yes |
Trend indicator |
no |
no |
yes |
Data logging |
no |
no |
yes |
Station list |
no |
no |
yes |
CoDeSys 2.x |
no |
yes |
yes |
CoDeSys ab 3.5 |
yes* |
yes |
yes |
RTS cameras |
no |
no |
yes |
VNC (Remote) |
no |
yes |
yes |
*depending on the programming
Appropriate tci Web-Panels:
Panel mount:
![E10A-Produktbild-500x500](https://www.tci.de/hs-fs/hubfs/2023_fileadmin/Produkte/Industrie%20Produkte/Touchpanel/E-Serie/E10A-Produktbild-500x500.jpg?width=540&height=540&name=E10A-Produktbild-500x500.jpg)
E series
- 4,3 inch, 7 inch and 10 inch touch, light synthetic chassis
- front IP54
- UL certified
![Produktbild_F16A_mit-Bildschirminhalt_Frei](https://www.tci.de/hs-fs/hubfs/2023_fileadmin/Produkte/Industrie%20Produkte/Touchpanel/F-Serie/Produktbild_F16A_mit-Bildschirminhalt_Frei.png?width=540&height=540&name=Produktbild_F16A_mit-Bildschirminhalt_Frei.png)
F series
- rugged system for panel mount
- flat and seamless real glass front
- quick and easy eccentric mounting
![Produktbild_C120_ALU_2023_1000x1000_frei](https://www.tci.de/hs-fs/hubfs/2023_fileadmin/Produkte/Industrie%20Produkte/Touchpanel/C-Serie/Produktbild_C120_ALU_2023_1000x1000_frei.png?width=540&height=540&name=Produktbild_C120_ALU_2023_1000x1000_frei.png)
C series
- 7 inch, 12 inch or 15 inch touch panel
- maintenance free and ultra compact design
- can be used as a CoDeSys web panel, PLC control panel or panel PC
Mounting arm support:
![Produktbild_E10T_1000x1000px](https://www.tci.de/hs-fs/hubfs/2023_fileadmin/Produkte/Industrie%20Produkte/Touchpanel/E-Serie/Produktbild_E10T_1000x1000px.jpg?width=540&height=540&name=Produktbild_E10T_1000x1000px.jpg)

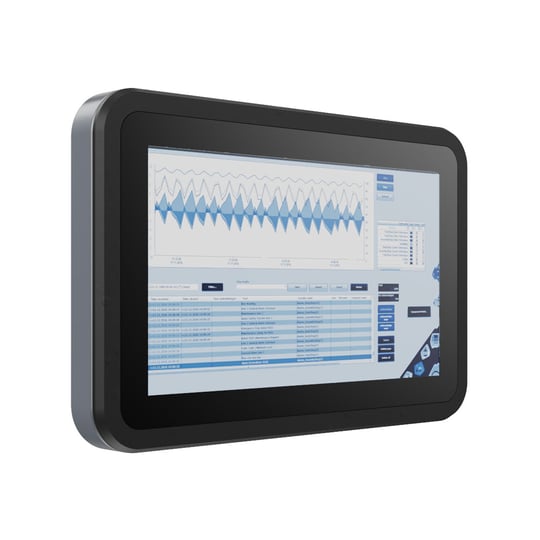

E10T
- 10" touch, lightweight plastic housing
- Front IP54
![Produktbild_F16T_perspektivisch_mitSonnenschutz_1000px_mit-Inhalt](https://www.tci.de/hs-fs/hubfs/2023_fileadmin/Produkte/Industrie%20Produkte/Touchpanel/F-Serie/Produktbild_F16T_perspektivisch_mitSonnenschutz_1000px_mit-Inhalt.jpg?width=540&height=540&name=Produktbild_F16T_perspektivisch_mitSonnenschutz_1000px_mit-Inhalt.jpg)
F16T
- Robust aluminium housing, IP65
- Flat and seamless real glass front
![Produktbild_K15_Nachsatz-2023_1000x1000px](https://www.tci.de/hs-fs/hubfs/2023_fileadmin/Produkte/Industrie%20Produkte/Touchpanel/K-Serie/Produktbild_K15_Nachsatz-2023_1000x1000px.png?width=540&height=540&name=Produktbild_K15_Nachsatz-2023_1000x1000px.png)
K series
- Lightweight plastic housing
- Modular design and customisability
- Suitable for mounting arm and wall mounting
